ABB 3HAC043166-004

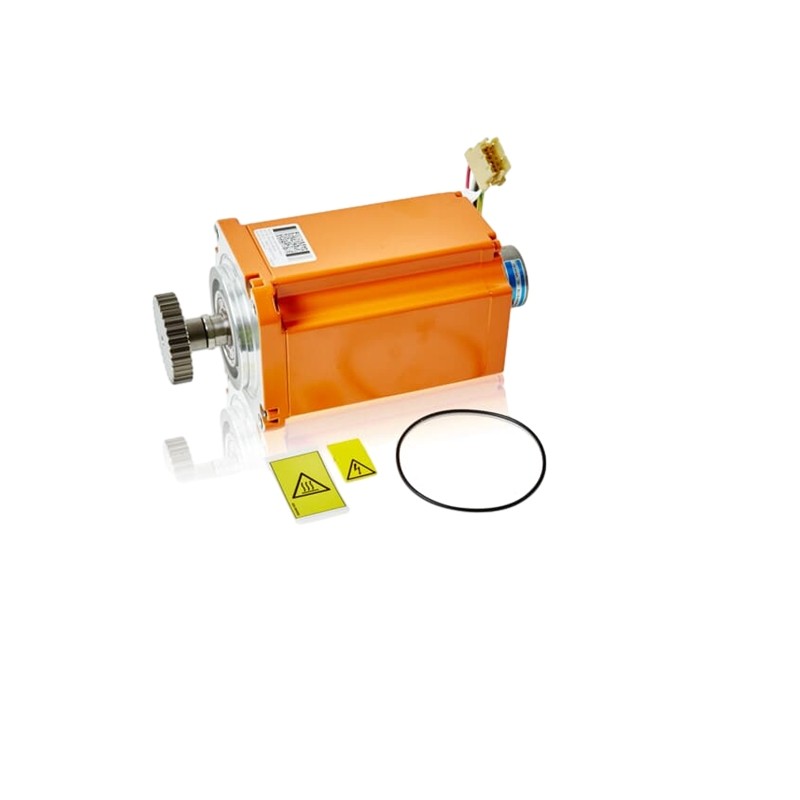

ABB 3HAC043166-004 is an industrial robot servo motor assembly with integrated pinion, designed for the Axis 1 drive system of ABB IRB 4600 robot series. It is a Type C rotational AC motor used for base rotation movement, providing the required torque and precision control for robot positioning applications.

This spare part is mainly used for ABB robot maintenance, replacement, and restoration of original motion performance. The complete part number and robot configuration must be verified before replacement to ensure mechanical and electrical compatibility.

Core Functions

• Axis 1 motion drive

  • Provides rotational power for the first robot axis (base rotation).
  • Controls the large-range positioning movement of the IRB 4600 manipulator.

• Integrated pinion transmission

  • Supplied as a motor assembly with pinion, allowing direct integration into the robot gearbox/transmission structure.

• High-precision servo control

  • Works with ABB IRC5 robot controllers and servo systems to maintain accurate positioning, repeatability, and dynamic response.

• Robot restoration and replacement

  • Used for replacing worn, damaged, or failed Axis 1 motor assemblies during robot servicing.

Design Features

• Type: Type C robot motor with pinion
• Axis Position: Axis 1
• Robot Platform: ABB IRB 4600
• Color / Version: ABB Orange standard execution
• Assembly Design: Motor + pinion + O-ring configuration

The Type C motor design must match the original robot configuration. ABB spare-part documentation lists 3HAC043166-004 specifically for IRB 4600 Axis 1 Type C applications.

Hardware Composition

Typical Applications

ABB 3HAC043166-004 is commonly applied in:

• Industrial robot maintenance
• Automotive manufacturing lines
• Welding and handling robots
• Material transfer systems
• Machine tending applications
• High-speed production automation

Compatible robot applications include ABB IRB 4600 variants such as:

• IRB 4600-60/2.05
• IRB 4600-45/2.05
• IRB 4600-40/2.55
• IRB 4600-20/2.55

Maintenance Considerations

• Verify the robot model, axis number, motor type, and full ABB article number before installation.
• Do not mix different motor types (Type C / Type D) unless ABB documentation confirms compatibility.
• Record encoder position and robot calibration data before removing the original motor.
• After replacement:
  • Check mechanical alignment
  • Verify cable connections
  • Perform robot calibration
  • Test low-speed axis movement before automatic operation

Overall Evaluation

ABB 3HAC043166-004 is a critical motion component for ABB IRB 4600 industrial robots. As an Axis 1 Type C motor with pinion, it directly affects robot base rotation accuracy, stability, and production reliability. For maintenance teams operating ABB robotic systems, using the correct original part number is essential to ensure mechanical compatibility and restore factory-level performance.
