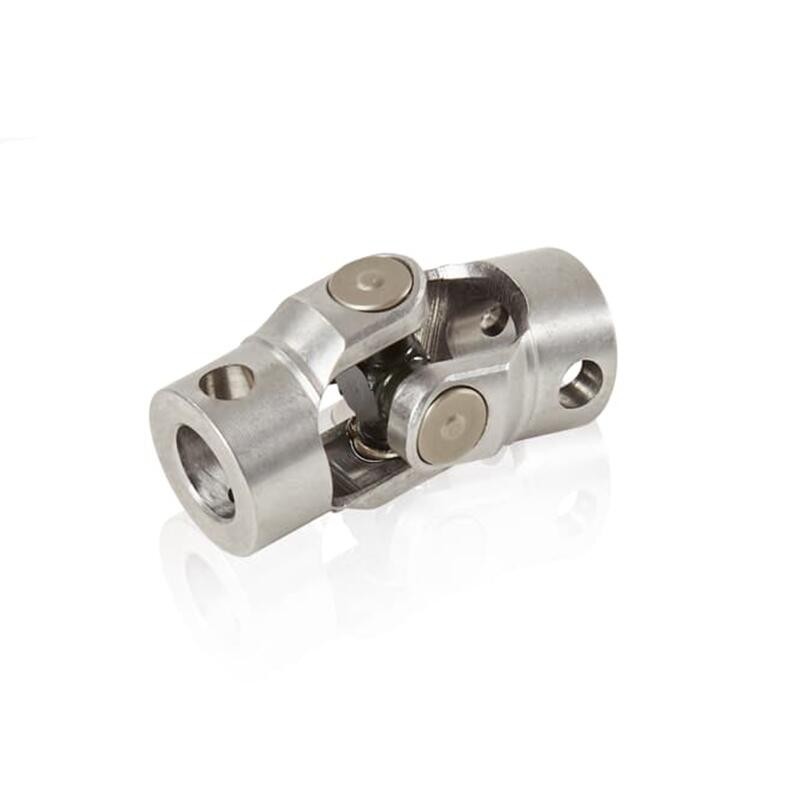

ABB 3HAC046664-001

The ABB 3HAC046664-001 is an ABB Robotics mechanical spare part, identified as a Universal Joint. It is designed for ABB IRB 360 parallel robot (Delta robot) systems and is used as a key mechanical connection component in the robot arm and telescopic shaft assembly.

As a precision transmission component, the universal joint enables flexible mechanical movement between robot arm elements, maintaining accurate motion transmission during high-speed pick-and-place operations.

Core Functions

• Provides flexible mechanical coupling between moving robot components
• Transfers motion while allowing angular movement between connected shafts
• Maintains smooth and accurate robot axis operation
• Supports high-speed repetitive movements in Delta robot applications
• Helps preserve positioning accuracy and mechanical stability

The 3HAC046664-001 replaces the previous universal joint part 3HAC028132-001 in ABB IRB 360 documentation.

Design Features

• Component Type: Universal joint
• Application Category: ABB Robotics mechanical components
• Robot Platform: ABB IRB 360 series
• Installation Location: Arm system / telescopic shaft assembly
• Design Purpose: High precision motion transmission and flexible mechanical connection

The component is supplied as part of IRB 360 spare-part and upgrade assemblies, including upgrade kits for IRB 360 variants.

Hardware Composition

Typical mechanical assembly includes:

• Precision-machined universal joint body
• Joint connection interfaces
• Bearing/contact surfaces for articulated movement
• Mechanical fastening points

Technical data:

• Product name: Universal joint
• ABB Part Number: 3HAC046664-001
• Net weight: approximately 0.064 kg
• Dimensions: approximately 48 × 25.5 × 25.5 mm

Typical Applications

ABB 3HAC046664-001 is mainly applied in:

• ABB IRB 360 Delta robots
• High-speed material handling systems
• Food and beverage packaging automation
• Pharmaceutical production lines
• Electronics assembly applications
• Pick-and-place robotic systems

It is suitable for applications requiring high repeatability, fast cycle times, and precise mechanical motion.

Maintenance Considerations

• Regularly inspect the universal joint for mechanical wear or looseness
• Check for abnormal vibration or increased robot positioning errors
• Replace worn joints to prevent damage to connected arm components
• Follow ABB IRB 360 maintenance procedures and recommended replacement intervals

Correct installation and inspection help maintain robot accuracy and extend mechanical service life.

Overall Evaluation

The ABB 3HAC046664-001 Universal Joint is a critical mechanical transmission component for ABB IRB 360 robots. With its compact design, precision manufacturing, and compatibility with ABB Delta robot systems, it supports reliable high-speed robotic operation in demanding industrial automation environments.
