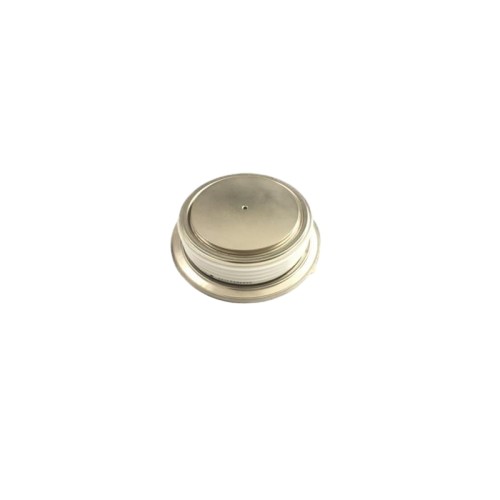

ABB 5SDF1045H0002

The ABB 5SDF1045H0002 is a high-power press-pack semiconductor device designed for demanding power conversion and industrial electrical systems. It belongs to ABB’s 5SDF series of high-voltage power electronic components and is widely used in high-current rectification, power conversion, and medium-to-high voltage drive applications.

With its robust press-pack structure, high voltage capability, and excellent thermal performance, the 5SDF1045H0002 is suitable for critical power electronics equipment such as HVDC converter systems, SVC/STATCOM installations, industrial converters, and large-scale motor drive systems.

Technical Parameters

Core Functions

• High-power AC/DC rectification and energy conversion
• High-voltage switching and current control
• Protection of power circuits against electrical stress
• Stable operation under high current and thermal cycling conditions
• Supporting converter platforms requiring reliable semiconductor switching elements

The press-pack design enables efficient electrical conduction and heat transfer while improving reliability compared with conventional solder-based semiconductor packages.

Design Features

Press-Pack Construction

The ABB 5SDF1045H0002 uses a disc-type press-pack structure, where mechanical pressure maintains electrical contact and thermal conduction between semiconductor chips and cooling surfaces. This design improves resistance to thermal fatigue and supports long service life in heavy-duty applications.

High Voltage and High Current Capability

The module is designed for high-energy conversion systems requiring strong voltage blocking capability and large current handling capacity, making it suitable for industrial power transmission and drive equipment.

Low Power Loss Operation

Optimized semiconductor characteristics provide low conduction losses and efficient operation, helping improve the overall energy efficiency of power conversion systems.

Hardware Composition

The ABB 5SDF1045H0002 mainly consists of:

• High-power semiconductor chip
• Ceramic insulated housing
• Metal contact electrodes
• Press-pack mechanical structure
• High-performance thermal interfaces

The compact disc-style construction allows integration into modular converter assemblies and high-power electrical cabinets.

Typical Applications

The ABB 5SDF1045H0002 is commonly applied in:

• HVDC transmission converter stations
• Static Var Compensation (SVC) systems
• STATCOM reactive power compensation equipment
• Medium-voltage industrial converters
• Large motor drive systems
• Mining, metallurgy, and heavy industrial power systems
• Renewable energy power conversion equipment

Maintenance Considerations

• Check mechanical clamping force according to ABB installation requirements.
• Ensure proper heatsink contact and cooling performance.
• Inspect for overheating, abnormal voltage drop, or leakage current increase.
• Verify insulation resistance before system startup.
• Replace damaged semiconductor modules with compatible ABB-certified components.

Proper thermal management and mechanical installation are essential for maintaining the reliability of press-pack semiconductor devices.

Overall Evaluation

The ABB 5SDF1045H0002 is a high-reliability power semiconductor component designed for heavy-duty industrial energy conversion applications. Its press-pack construction, high voltage capability, and strong thermal endurance make it a valuable spare part for HVDC systems, industrial converters, and high-power drive equipment.
