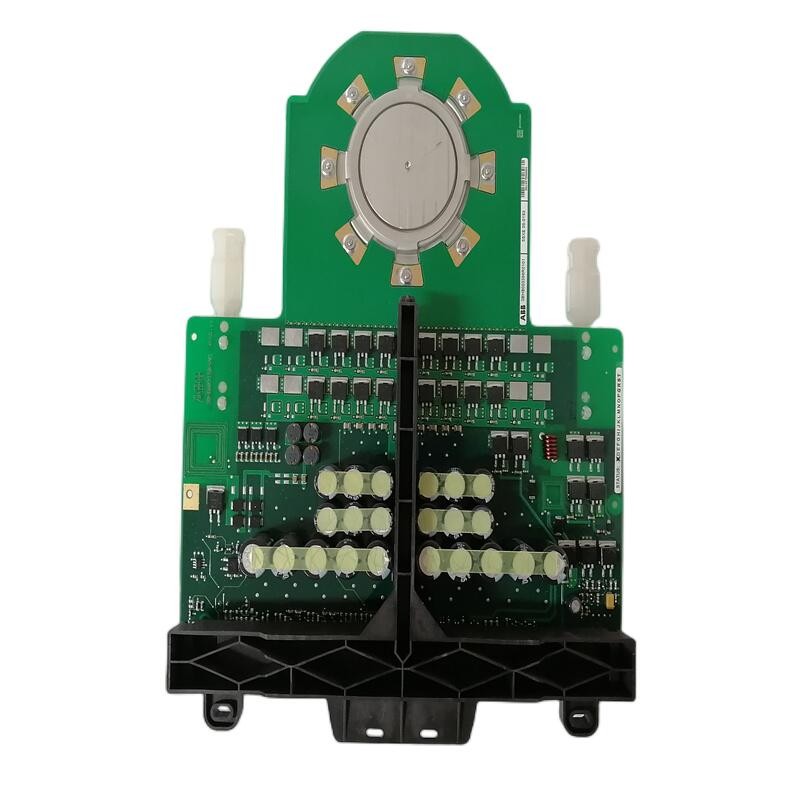

ABB 5SHX1445H0002 3BHL000387P0101

The ABB 5SHX1445H0002 (Order No. 3BHL000387P0101) is a high-power Integrated Gate-Commutated Thyristor (IGCT) power semiconductor module designed for ABB medium-voltage power conversion equipment. It is mainly used as a core switching component in high-power converters, medium-voltage drives, excitation systems, and industrial power electronics applications.

This module combines high-voltage blocking capability, high-current switching performance, and fast gate control technology, providing reliable operation in demanding industrial environments such as power generation, metallurgy, marine, and heavy industrial drive systems.

Technical Parameters

Core Functions

• Provides high-speed switching control for medium-voltage power conversion circuits.
• Controls high current conduction and turn-off processes through IGCT gate technology.
• Enables efficient energy conversion with lower switching losses compared with traditional thyristor solutions.
• Supports reliable operation of high-power motor drives, excitation systems, and converter applications.
• Works together with associated gate driver and protection circuits to achieve stable semiconductor operation.

Design Features

High Voltage and High Current Capability

The 5SHX1445H0002 is designed for high-power applications requiring strong electrical performance, offering high blocking voltage and high current carrying capability for industrial converter systems.

IGCT Technology

IGCT technology integrates the advantages of GTO thyristors and transistor switching characteristics, providing:

• Fast switching response
• Low conduction losses
• High efficiency
• Strong overload capability
• Improved system reliability

Robust Industrial Construction

The module uses a rugged power semiconductor structure suitable for continuous operation under high electrical stress, vibration, and industrial environmental conditions.

Hardware Composition

The ABB 5SHX1445H0002 assembly typically consists of:

• IGCT semiconductor chip
• Integrated gate switching structure
• Gate control interface
• Electrical insulation structure
• High-power terminal connections
• Cooling contact surfaces

The module is normally used together with compatible ABB gate driver assemblies to form a complete power switching unit.

Typical Applications

Medium Voltage Drives

Used in ABB medium-voltage drive platforms for controlling large industrial motors in:

• Mining equipment
• Compressors
• Pumps
• Fans
• Rolling mills

Power Conversion Systems

Applied in:

• Industrial converters
• Renewable energy power conversion
• HV power electronic systems
• Large-scale motor control equipment

Excitation Systems

Used in high-power excitation and converter applications requiring rapid switching and high reliability.

Maintenance Considerations

• Inspect semiconductor surfaces and connections regularly for overheating or mechanical stress.
• Verify cooling system performance to prevent thermal overload.
• Check gate driver communication and protection circuits before replacement.
• Replace damaged modules only with compatible ABB original components.
• Perform insulation resistance and electrical testing after installation.
• Keep spare modules stored in controlled environments to avoid moisture and contamination damage.

Overall Evaluation

The ABB 5SHX1445H0002 / 3BHL000387P0101 is a critical high-power IGCT semiconductor module for ABB medium-voltage converter systems. With high voltage capability, strong current handling, fast switching performance, and reliable industrial design, it is widely applied in demanding power electronics environments. It is an important spare component for maintaining the availability and stability of ABB high-power drive and converter equipment.
