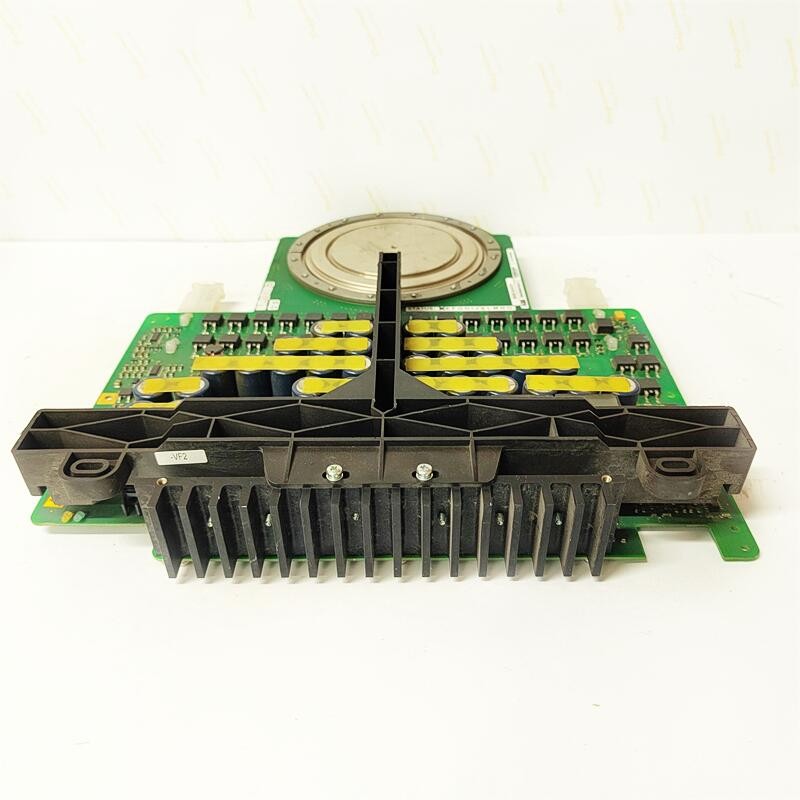

ABB 5SHX2645L0002 3BHB012961R0001 3BHE009681R0101 GVC750BE01

GVC750BE01 is a high-power thyristor control module developed by ABB, with part numbers 5SHX2645L0002, 3BHB012961R0001 and 3BHE009681R0101. It belongs to the excitation control series components, specially designed for high-voltage and high-power converter systems. This integrated module combines power semiconductor devices and driving, monitoring circuits. It is widely used in large industrial power conversion equipment, providing stable gate triggering, real-time status feedback and fault protection functions for thyristor stacks. It is a core control unit for synchronous generator excitation systems and high-power rectifier/inverter units.

Technical Parameters

• Model: GVC750BE01
• ABB code: 5SHX2645L0002, 3BHB012961R0001, 3BHE009681R0101
• Device type: Thyristor gate control unit
• Operating voltage range: Low-voltage auxiliary power supply 24 V DC
• Trigger output: Matched for high power phase-controlled thyristor
• Operating temperature: -10°C ~ +70°C
• Storage temperature: -40°C ~ +85°C
• Communication interface: Internal hardwired signal feedback for thyristor status
• Protection functions: Over-current detection, over-temperature monitoring, loss-of-pulse alarm
• Insulation level: Reinforced insulation between power circuit and control circuit
• Installation form: Rack-mounted modular design
• Cooling mode: Natural air cooling

Product Features

1. Highly integrated design, integrating thyristor trigger drive, signal sampling and fault diagnosis in one unit, reducing external wiring complexity.
2. High anti-interference capability, stable trigger performance under strong electromagnetic interference environment of high-power converters.
3. Built-in multi-dimensional fault monitoring, capable of capturing thyristor open circuit, short circuit and trigger failure signals and uploading alarm signals.
4. Modular and standardized structure, convenient for on-site replacement and maintenance, shortening equipment downtime.
5. Compatible with ABB large excitation system framework, excellent matching performance with thyristor valve stacks.
6. Wide working temperature range, adapting to harsh industrial site environment.

Structural Composition

1. Gate trigger circuit: Generates accurate phase trigger pulses to drive high-power thyristors.
2. Signal acquisition unit: Collects voltage and current signals of the thyristor branch for real-time monitoring.
3. Fault detection & logic circuit: Judges abnormal working status and outputs alarm interlock signals.
4. Isolation unit: Realizes electrical isolation between low-voltage control side and high-voltage power side to improve system safety.
5. Power supply module: Converts external 24V DC to the working power required for each internal circuit.
6. Housing and terminal block: Metal housing for electromagnetic shielding; terminal connectors for signal and power wiring.

Application Fields

• Large synchronous generator excitation systems for thermal power, hydropower and nuclear power plants
• High-power phase-controlled rectifier cabinets in metallurgical industry
• Industrial high-power DC power supply equipment
• Static var compensator (SVC) and reactive power compensation devices
• High-power inverter and converter units for heavy industry
• Power conversion equipment for large wind power and energy storage systems

Conclusion

GVC750BE01 (5SHX2645L0002 / 3BHB012961R0001 / 3BHE009681R0101) is a mature high-performance thyristor gate control module of ABB. With reliable trigger performance, complete fault monitoring and strong environmental adaptability, it serves as an indispensable core component of high-power converter and generator excitation systems. Its modular design simplifies engineering installation and after-sales maintenance. It has been widely deployed in heavy industry and power generation scenarios, and can ensure long-term stable operation of high-power power electronic systems under demanding working conditions.
