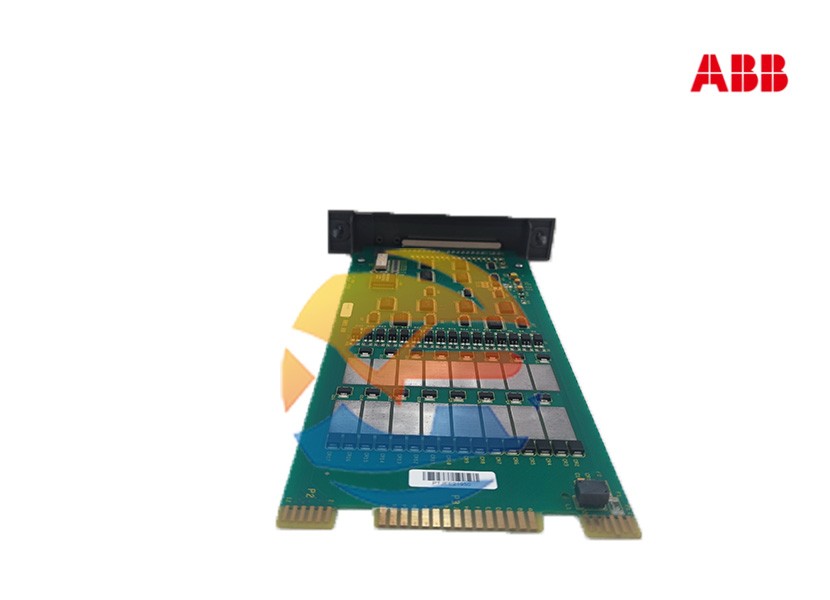

The ABB IMDSO14 is a Digital Slave Output Module primarily designed as a component within the ABB Bailey Infi 90 Distributed Control System (DCS) . It is a critical interface module responsible for executing control commands by switching industrial field devices.
The following table summarizes the core technical parameters of the IMDSO14 module:
| Feature Category | Specification Detail |
|---|---|
| Module Type | Digital Slave Output Module |
| Number of Channels | 16 independent digital output channels |
| Output Type | Relay Output (each channel can handle different AC/DC loads) |
| Load Voltage | Supports 24 VDC or 48 VDC |
| Max. Load Current | 2 A per channel |
| Isolation Voltage | 500 V AC/DC |
| Power Supply | +5 V DC at 370 mA |
| Communication Interface | Supports various protocols; integrates via the Bailey Infi 90 system bus |
| Dimensions (H x W x D) | 358.14 mm × 266.7 mm × 73.66 mm (Note: Another source lists 358.14mm x 271.78mm x 71.12mm, variations may exist due to product versions or mounting accessories) |
| Operating Temperature | -40°C to +85°C |
| Weight | Approximately 1 kg |
