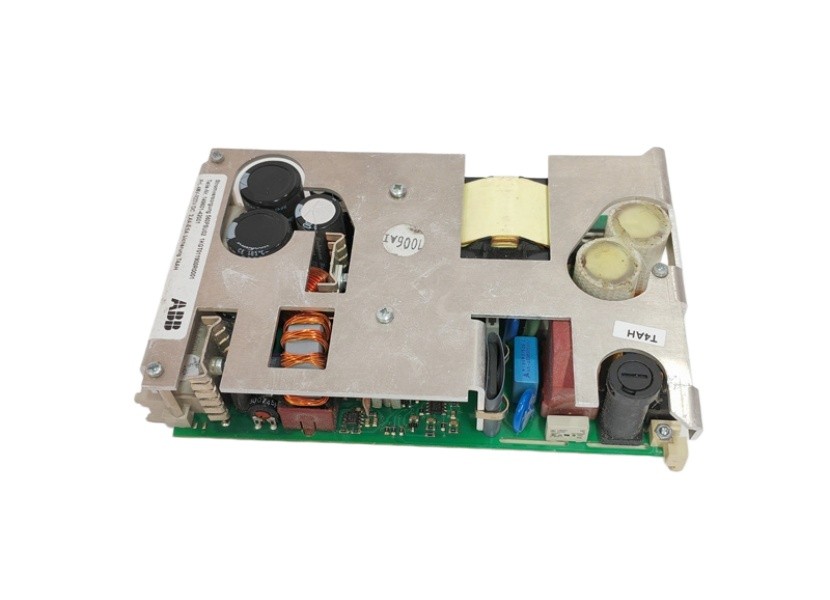

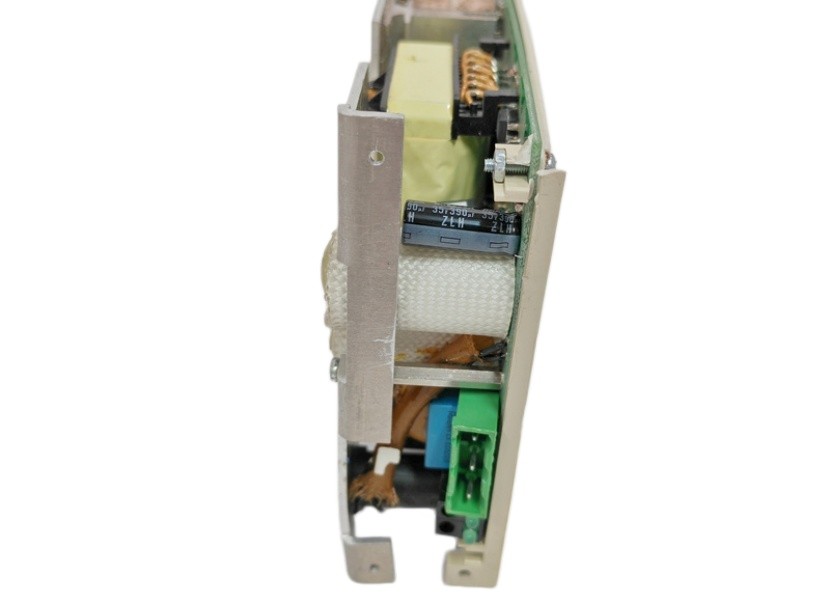

ABB 560PSU02 1KGT011900R0001

1. Product Overview

The 560PSU02 is a power supply module designed by ABB for the RTU560 series. Its primary function is to provide a stable DC power supply to the Remote Terminal Unit (RTU) and its submodules, such as the CPU and I/O modules. It serves as a critical power component in industrial automation, process control, and power systems.

2. Key Technical Specifications

• Input Voltage Range: 48 VDC to 220 VDC
• Output Voltage: 5 VDC and 24 VDC
• Power and Current:
  • Output Power: 85 W
  • Rated Current: 16 A
  • Maximum Output Current: 5 V channel up to 15 A, 24 V channel up to 0.7 A
  • Rated Power: approximately 85 W

3. Design and Compatibility

• Applicable to: RTU560 framework (e.g., 560MPR03, 560SFR03, etc.)
• Power Capacity: Supports powering up to 8 Communication Modules (CMUs) and is suitable for redundant configurations
• Mounting: DIN rail installation, standard 3U size

4. Environmental and Reliability Features

• Operating Temperature Range: -40°C to +85°C
• Durability: Includes input/output isolation, short-circuit protection, overvoltage protection, and other safety features

5. Typical Applications

• Industrial automation systems
• Power system monitoring
• Process control systems
• Other control equipment requiring a stable DC power supply
