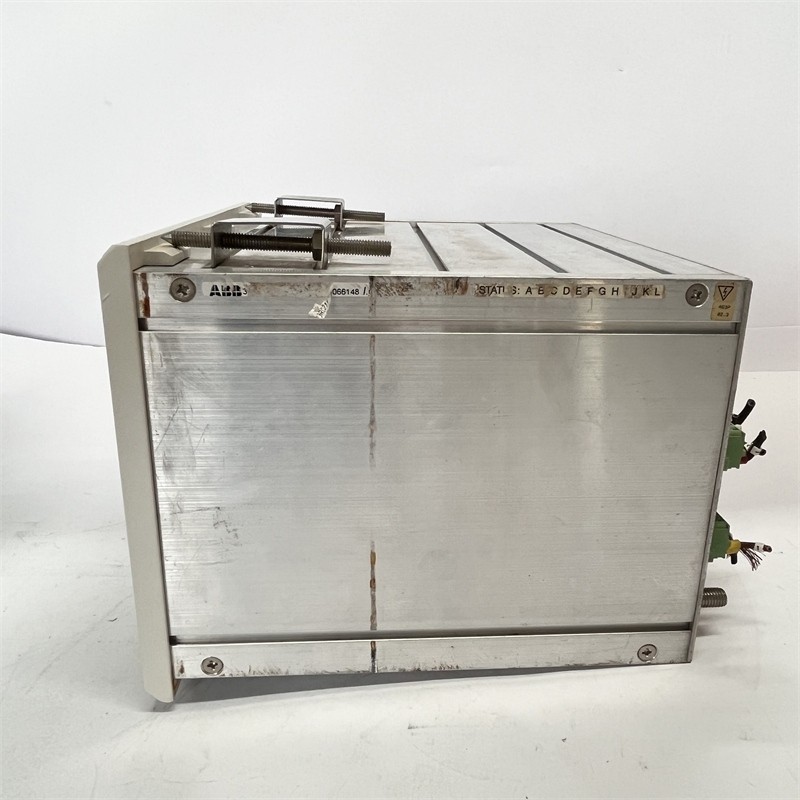

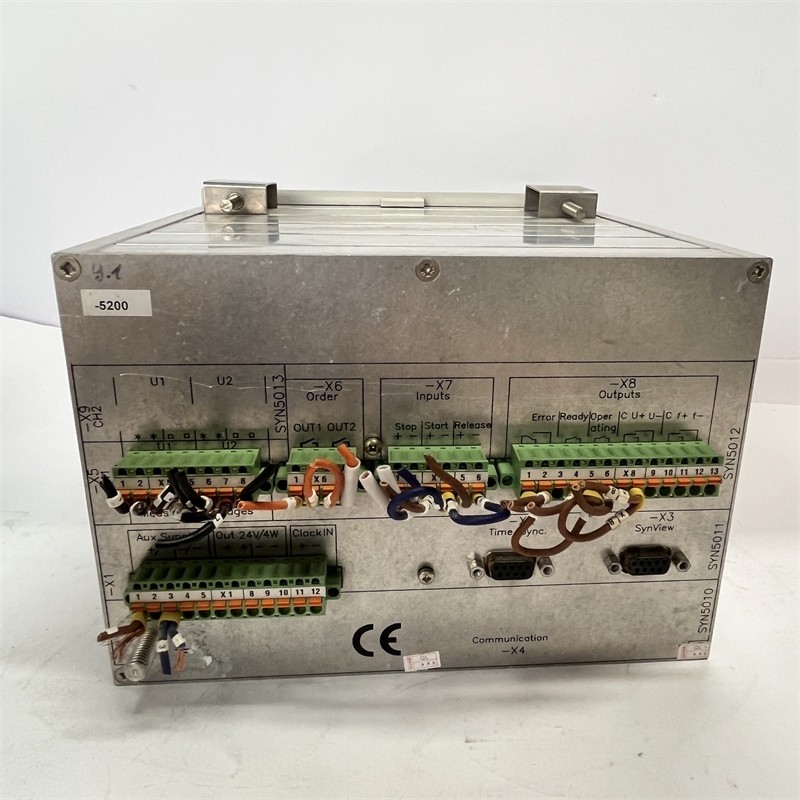

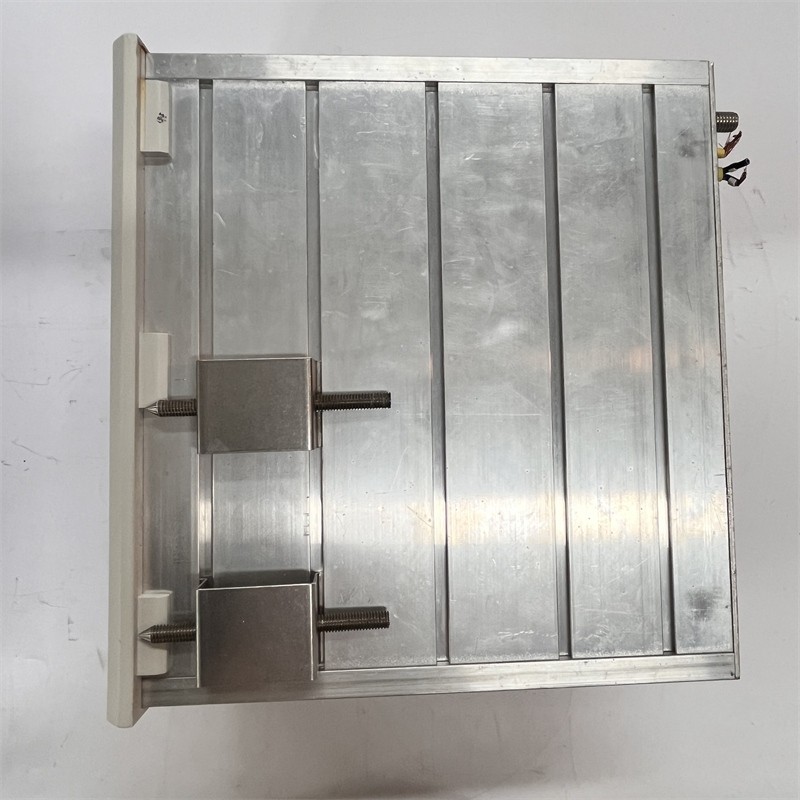

ABB SYN5202A is a product from ABB’s SYNCHROTACT 5 series, mainly used in generator synchronization (automatic paralleling / grid connection control) systems.

What it is

ABB SYN5202A is typically described as an:

• Automatic synchronizing device / synchronizer module
• Used in power plants and industrial power systems
• Part of ABB SYNCHROTACT® 5 family

It ensures that a generator is safely connected to a power grid by matching:

• Voltage
• Frequency
• Phase angle

Main function

Before a generator connects to the grid, SYN5202A:

• Continuously measures grid and generator parameters
• Compares phase difference
• Sends control signals to adjust speed and excitation
• Issues a closing command only when conditions are safe

This helps prevent:

• Large inrush current
• Mechanical stress on turbine/generator
• Grid disturbances

Key features (typical for SYNCHROTACT 5 series)

• Dual-channel redundant design for high safety
• Automatic synchronization and paralleling control
• Protection against out-of-phase closing
• Supports industrial communication protocols depending on system configuration (such as Modbus or Profibus)

Typical applications

• Power plant generator grid connection
• Diesel, gas, and hydro generator sets
• Industrial cogeneration systems
• Microgrid and backup power systems

Simple summary

The ABB SYN5202A acts as a control device that ensures a generator is properly synchronized before it is connected to an electrical grid, preventing electrical and mechanical damage.
