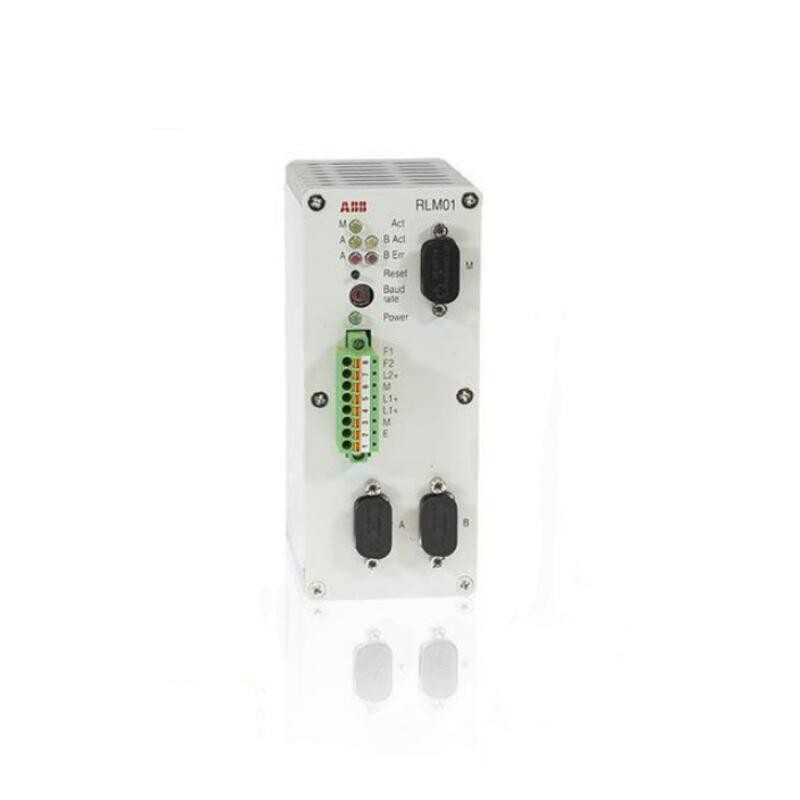

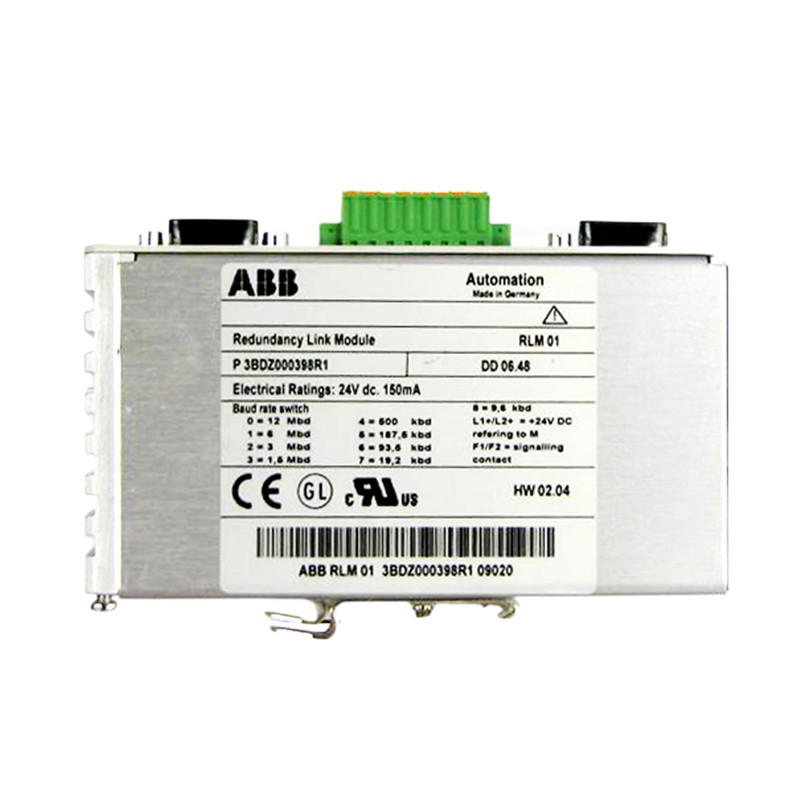

ABB 3BDZ000398R1 RLM01 PROFIBUS

ABB 3BDZ000398R1 RLM01 is a PROFIBUS Redundancy Link Module designed for industrial automation communication systems. It provides PROFIBUS DP/FMS line redundancy, allowing standard non-redundant PROFIBUS networks to be converted into redundant communication architectures to improve system availability and fault tolerance.

Product Overview

The ABB RLM01 acts as an active PROFIBUS redundancy coupler. It connects a single PROFIBUS DP line to two redundant PROFIBUS lines (A/B) and automatically manages communication between them. It can also combine two redundant PROFIBUS lines into one standard PROFIBUS line.

Model: RLM01
Order Number: 3BDZ000398R1
Product Type: PROFIBUS Redundancy Link Module
Communication Protocol: PROFIBUS DP / FMS
Interface Type: RS-485

Technical Description

• Converts a non-redundant PROFIBUS line into two redundant PROFIBUS communication paths and vice versa.
• Provides continuous monitoring of PROFIBUS communication status and detects line faults.
• Transparent operation for PROFIBUS DPV1 services.
• Integrated repeater functionality improves signal quality and network reliability.
• Supports three PROFIBUS ports:
  • Line A (redundant channel)
  • Line B (redundant channel)
  • Main PROFIBUS line (M)

Key Technical Specifications

Features & Benefits

• High availability communication: Maintains PROFIBUS communication even if one redundant line fails.
• Automatic line switching: Detects communication errors and switches to the healthy communication path.
• No PROFIBUS address required: Transparent integration into existing PROFIBUS configurations.
• Diagnostic functions: Front-panel LED indicators and signaling contacts provide fault information.
• Industrial reliability: Suitable for continuous process automation applications.

Applications

ABB RLM01 is commonly used in:

• Process control systems
• Power generation plants
• Chemical and petrochemical industries
• Water and wastewater treatment systems
• ABB Freelance and other PROFIBUS-based automation architectures
• Redundant remote I/O communication networks

Conclusion

The ABB 3BDZ000398R1 RLM01 PROFIBUS Redundancy Link Module is a reliable communication infrastructure component for creating highly available PROFIBUS networks. By providing redundant RS-485 communication paths, signal monitoring, and automatic fault handling, it helps minimize downtime and improves the reliability of critical industrial automation systems.
