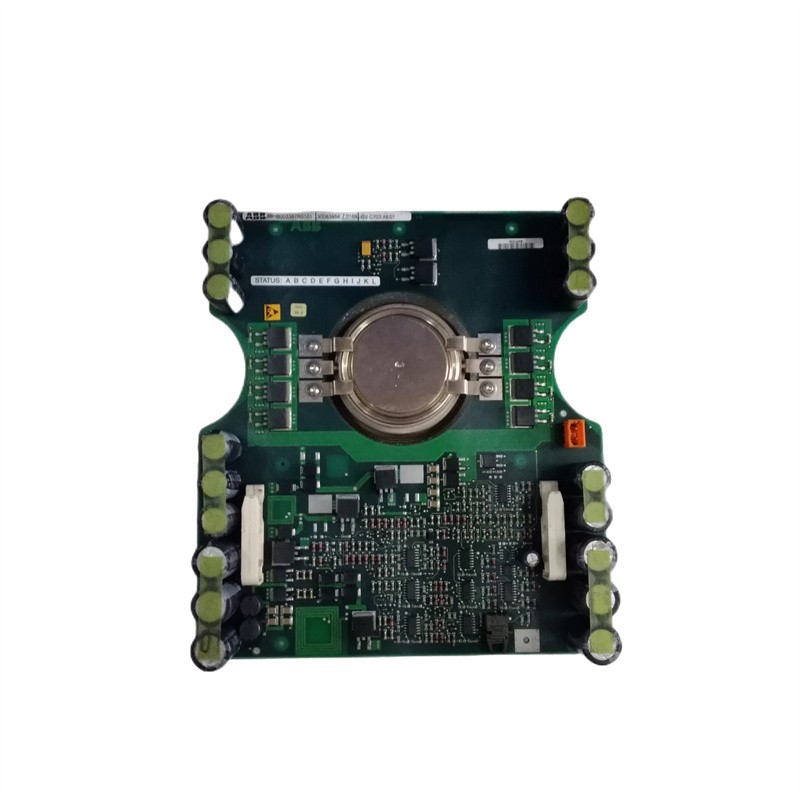

ABB 5SHX0660F0001 3BHB003387R0101 GVC703AE01 3BHL00386P0101

1. Product Identification

• Manufacturer: ABB
• Main Type: IGCT (Integrated Gate Commutated Thyristor) Power Semiconductor Module
• ABB Type Code: 5SHX0660F0001
• Associated Part Numbers:
  • 3BHB003387R0101
  • GVC703AE01
  • 3BHL00386P0101
• Product Category: High-power semiconductor switching device / IGCT module assembly

The ABB 5SHX0660F0001 is an asymmetric IGCT module designed for high-power converters, combining the high voltage capability of thyristors with the fast switching performance of transistor-based devices.

2. Technical Parameters (Typical)

(Exact voltage, current, and thermal ratings depend on the specific ABB converter system configuration and datasheet revision.)

3. Product Features

High Power Handling Capability

The IGCT technology allows the device to handle very high voltage and current levels, making it suitable for demanding industrial power applications.

Fast Switching Performance

Compared with conventional thyristors, IGCT devices provide faster turn-off capability, improving converter efficiency and dynamic response.

Integrated Gate Drive Technology

The module works together with the GVC703AE01 gate control unit to provide:

• Precise gate triggering
• Reliable turn-on/turn-off control
• Fault monitoring and protection functions

High Reliability Design

The module includes protection and monitoring functions to help prevent damage caused by:

• Overcurrent
• Overvoltage
• Excessive temperature
• Abnormal switching conditions

4. Structural Composition

The ABB IGCT module assembly typically consists of:

1. IGCT Semiconductor Element

• Main high-power switching element
• Performs controlled current interruption
• Handles high electrical stress

2. Gate Drive Unit

• Provides high-speed gate current pulses
• Controls IGCT switching operation
• Ensures reliable commutation

3. Protection Circuitry

Includes monitoring and protection functions such as:

• Current monitoring
• Voltage supervision
• Thermal protection

4. Mechanical & Thermal Assembly

• Heat sink interface
• Electrical terminals
• Insulation structure
• Cooling interface

5. Application Fields

ABB 5SHX0660F0001 IGCT modules are mainly used in:

⚡ High Voltage Drives

• Large industrial motor drives
• Mining equipment drives
• Marine propulsion systems

⚡ Power Conversion Systems

• Medium-voltage converters
• High-power inverters
• Rectifier systems

⚡ Power Grid Applications

• HVDC systems
• FACTS (Flexible AC Transmission Systems)
• Reactive power compensation equipment

⚡ Industrial Energy Systems

• Steel plants
• Cement plants
• Renewable energy converters

6. Advantages

• High voltage blocking capability
• High current carrying capacity
• Low conduction losses
• Fast switching response
• High converter efficiency
• Long operational lifetime
• Suitable for harsh industrial environments

7. Conclusion

The ABB 5SHX0660F0001 (3BHB003387R0101 / GVC703AE01 / 3BHL00386P0101) is a high-performance IGCT power semiconductor module designed for ABB high-power converter platforms. It plays a critical role in controlling energy conversion in large industrial drives, HV power systems, and advanced power electronics applications. Its combination of high reliability, fast switching capability, and high-power handling makes it a key component in ABB medium- and high-voltage converter solutions.
