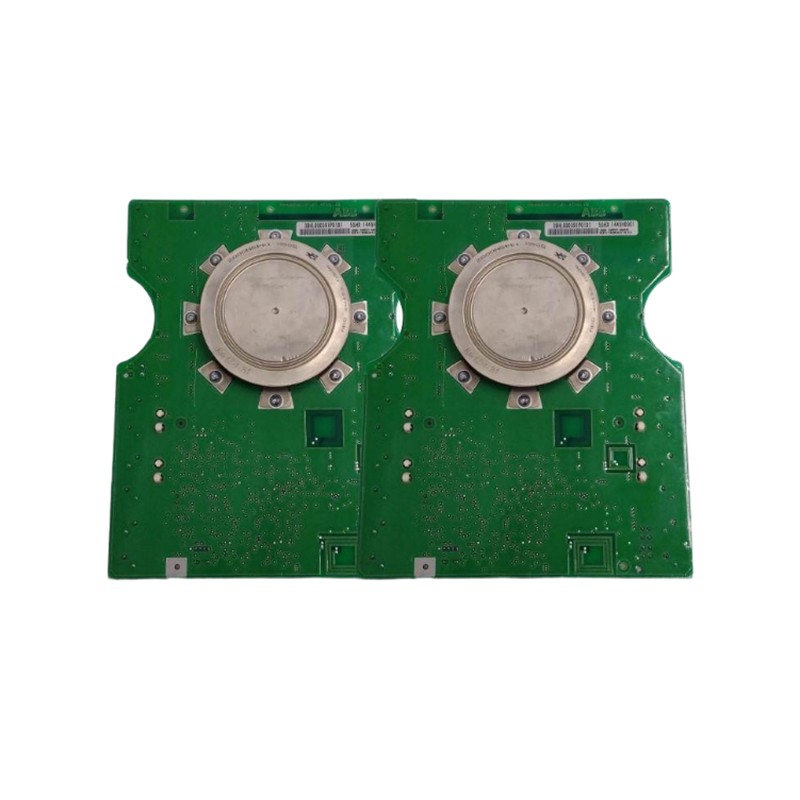

ABB 5SHX1445h0001 3BHI000391P01013BHB003230R0101 5SXE05-0152

The ABB 5SHX1445H0001 (ABB ID: 3BHL000391P0101) is a high-power IGCT (Integrated Gate-Commutated Thyristor) module designed for ABB medium-voltage power conversion systems. It is commonly paired with the 3BHB003230R0101 / 5SXE05-0152 gate driver (power drive board) to provide controlled switching and protection for high-power applications.

1. Product Information

2. Technical Parameters (Typical)

3. Structural Composition

The complete ABB power switching assembly generally consists of:

① IGCT Module – 5SHX1445H0001

• High-voltage power switching semiconductor
• Handles large current pulses and high DC-link voltage
• Provides fast turn-on/turn-off switching capability

② Gate Driver Board – 3BHB003230R0101 / 5SXE05-0152

• Provides gate control pulses
• Supplies driving energy to the IGCT
• Performs protection functions such as:
  • Overcurrent monitoring
  • Gate fault detection
  • Switching supervision

4. Main Features

High Power Capability

The 5SHX1445H0001 is designed for demanding medium-voltage applications requiring high current handling and reliable switching performance.

Fast Switching Performance

IGCT technology combines:

• High blocking capability of thyristor technology
• Fast controllable switching similar to transistor-based devices

This allows improved efficiency and dynamic response compared with conventional thyristor solutions.

High Reliability

Features include:

• Robust industrial semiconductor construction
• Low conduction losses
• High thermal performance
• Long service life in continuous-duty applications

5. Typical Applications

ABB 5SHX1445H0001 IGCT modules are widely used in:

• Medium-voltage AC drives
  • Large motors
  • Compressors
  • Pumps
  • Fans
• Industrial converter systems
  • Mining equipment
  • Cement plants
  • Steel mills
  • Marine propulsion
• Power conversion systems
  • Renewable energy converters
  • Grid stabilization equipment
  • High-power rectifiers/inverters

6. Compatible ABB Systems

Commonly associated ABB platforms include:

• ABB ACS6000 medium-voltage drives
• High-power industrial inverter systems
• IGCT-based converter cabinets

7. Maintenance Recommendations

For reliable operation:

• Check module mounting pressure and mechanical fastening
• Inspect cooling paths and heat sink cleanliness
• Verify gate driver connections
• Monitor abnormal temperature rise
• Test insulation resistance before commissioning
• Replace damaged gate driver boards together with the IGCT module when required

Conclusion

The ABB 5SHX1445H0001 / 3BHL000391P0101 with 3BHB003230R0101 (5SXE05-0152) is a high-performance 4.5 kV-class IGCT power module assembly intended for ABB medium-voltage converter systems. Its combination of high current capacity, fast switching, and industrial reliability makes it suitable for large-scale drive and power conversion applications.
