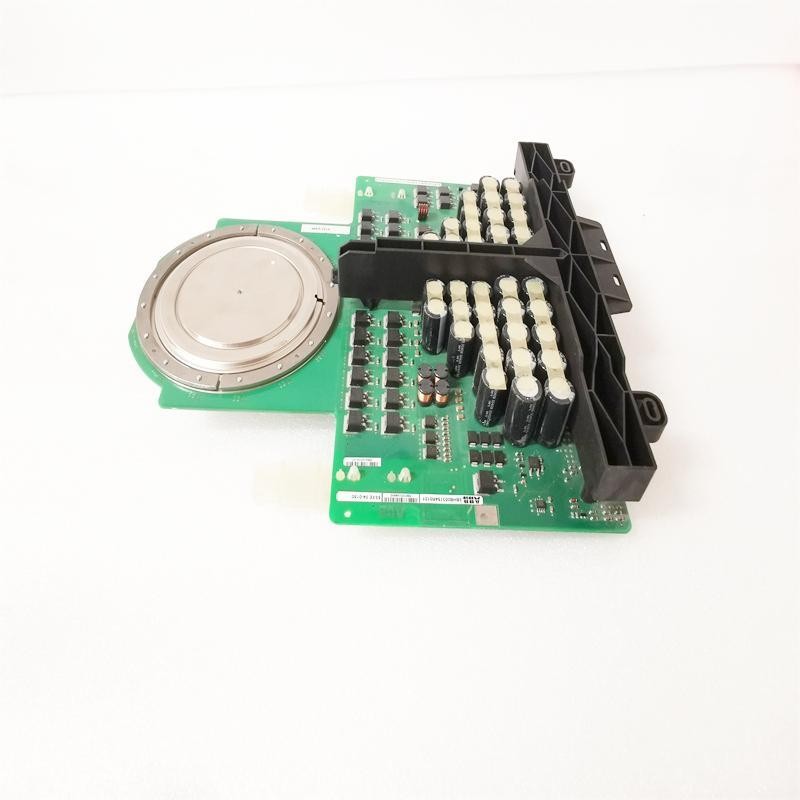

ABB 5SHX2645L0004 3BHL000389P0104

ABB 5SHX2645L0004 with order number 3BHL000389P0104 is a high-power IGCT RC (Integrated Gate-Commutated Thyristor, Reverse Conducting) semiconductor module designed for ABB medium-voltage power conversion systems. It is mainly used as a high-speed switching device in converters, inverters, and medium-voltage drive applications.

1. Product Information

2. Technical Parameters (Typical)

3. Product Features

High voltage and current capability
The 5SHX2645L0004 is designed for demanding power conversion environments where high blocking voltage, low conduction losses, and high reliability are required.

Integrated gate control
Unlike conventional GTO thyristors, IGCT technology integrates the gate drive structure closely with the semiconductor device, improving switching speed and reducing system complexity.

Low switching losses
The reverse-conducting IGCT design combines efficient current conduction with fast turn-off performance, making it suitable for high-power inverter applications.

High reliability press-pack construction
The press-pack structure provides strong mechanical stability and improved thermal performance for industrial power systems.

4. Structural Composition

The module mainly consists of:

• IGCT semiconductor wafer
  • Main power switching element
  • Handles high voltage and high current operation
• Integrated gate drive unit
  • Provides fast gate current control
  • Enables reliable turn-on and turn-off operation
• Reverse-conducting diode structure
  • Allows bidirectional current paths in converter topologies
• Press-pack mechanical assembly
  • Provides electrical contact pressure and heat transfer path

5. Application Fields

ABB 5SHX2645L0004 is commonly applied in:

• Medium-voltage AC drives
  • Large motors
  • Pumps
  • Fans
  • Compressors
• Industrial power converters
  • Metallurgy equipment
  • Mining systems
  • Heavy industrial machinery
• Power grid equipment
  • FACTS systems
  • High-power conversion systems
• Renewable energy systems
  • Wind power converters
  • Large-scale energy conversion equipment

6. Compatible ABB Systems (Typical)

This IGCT module is associated with ABB high-power converter platforms such as:

• ABB ACS6000 medium-voltage drive systems
• High-power rectifier/inverter phase modules
• Industrial converter assemblies

7. Conclusion

The ABB 5SHX2645L0004 (3BHL000389P0104) IGCT RC module is a high-performance power semiconductor component for demanding medium-voltage and high-power applications. Its IGCT technology provides high voltage capability, fast switching, low losses, and excellent reliability, making it a key component in ABB converter and drive systems.
