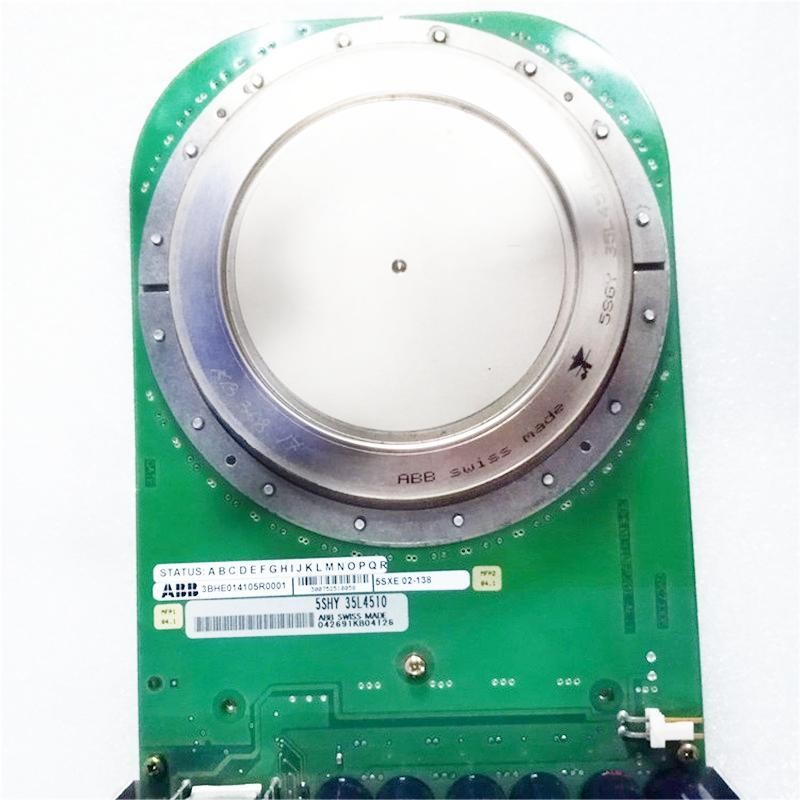

ABB 5SHY35L4510 3BHE014105R0001

ABB 5SHY35L4510 (3BHE014105R0001) is a high-power Asymmetric Integrated Gate-Commutated Thyristor (IGCT) module developed by ABB Semiconductors. It is designed for high-voltage, high-current power conversion systems, combining the low conduction losses of thyristors with the fast switching capability of transistor technologies.

This IGCT is widely used in ABB medium-voltage drive platforms such as ACS6000 and other high-power converter systems.

2. Technical Parameters

3. Product Features

High Voltage & High Current Capability

The 5SHY35L4510 is designed for demanding industrial power applications requiring large current handling and high blocking voltage capability.

Low Conduction Loss

IGCT technology provides a low forward voltage drop compared with conventional switching devices, improving converter efficiency and reducing heat generation.

Fast Switching Performance

The integrated gate structure enables fast turn-on and turn-off operation, making it suitable for medium-voltage inverter applications.

Integrated Gate Drive

The device integrates gate drive functions, optical command input, and status feedback, simplifying system design and improving operational reliability.

High Reliability Design

The press-pack structure provides good thermal performance, mechanical strength, and suitability for industrial environments.

4. Structural Composition

The ABB 5SHY35L4510 IGCT module mainly consists of:

• IGCT semiconductor chip
  • Main power switching element
  • Combines GTO thyristor structure with integrated gate control
• Gate Unit Assembly
  • Turn-on / turn-off driver circuits
  • Optical communication interface
  • Monitoring and protection circuits
• Press-Pack Housing
  • High-pressure contact structure
  • Double-sided cooling capability
• Electrical Terminals
  • Anode
  • Cathode
  • Gate/control interface

5. Application Fields

Medium Voltage Drives

Used in ABB high-power motor drives for:

• Mining equipment
• Oil & gas compressors
• Rolling mills
• Large pumps and fans

Power Conversion Systems

Applied in:

• High-voltage inverters
• Industrial converters
• Active rectifier units (ARU)
• Energy conversion equipment

Renewable Energy Systems

Suitable for:

• Wind power converters
• Grid-connected power conversion
• Energy storage power systems

Power Grid Applications

Used in:

• Static VAR compensation (SVC)
• Grid stabilization equipment
• High-power switching systems

6. Advantages

• High power density
• Excellent thermal performance
• Low switching losses
• High overload capability
• Long service life
• Suitable for harsh industrial environments
• Compatible with ABB ACS6000 / PCS6000-class converter systems

7. Conclusion

The ABB 5SHY35L4510 (3BHE014105R0001) is a high-performance 4500 V class IGCT power semiconductor module designed for demanding medium-voltage and high-power conversion applications. With its combination of high current capability, low losses, integrated gate control, and robust press-pack construction, it remains an important component in ABB industrial drive and power conversion systems.
