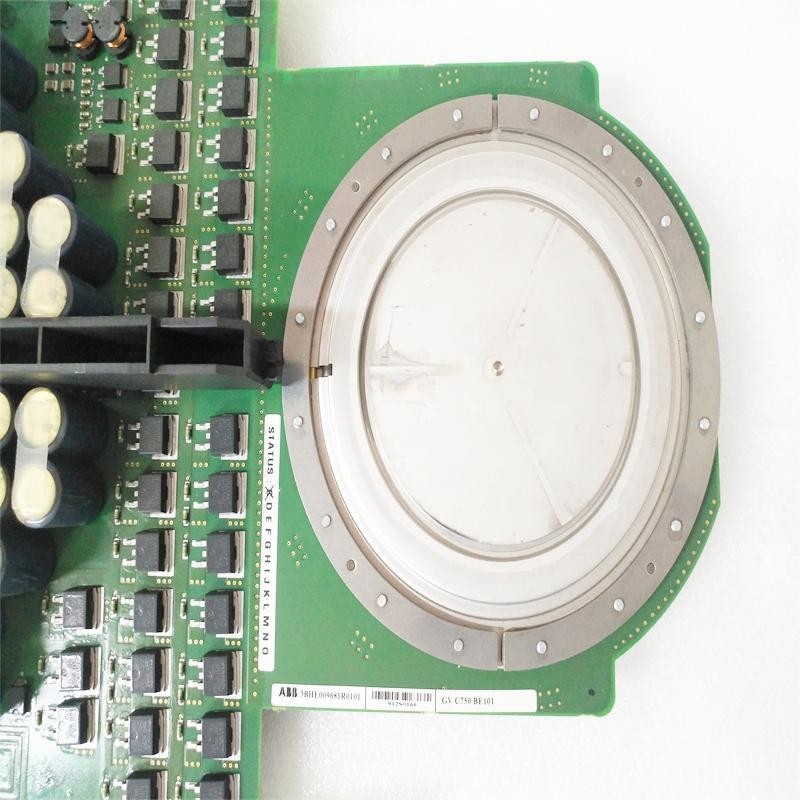

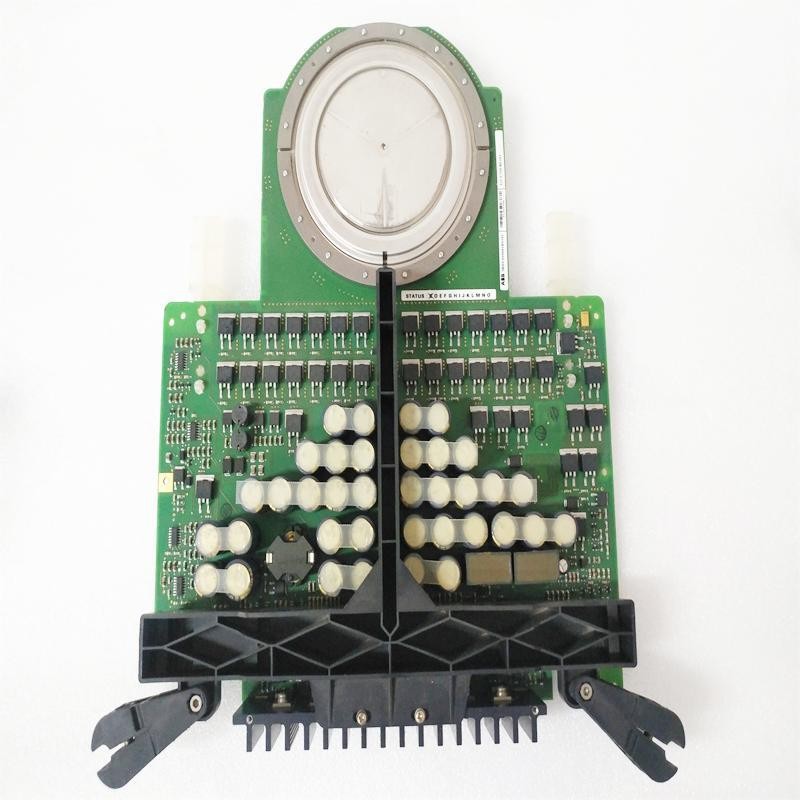

ABB 5SHY3545L0010 3BHB013088R000 5SHY3545L0010

ABB 5SHY3545L0010 (Order No. 3BHB013088R0001) is a high-power IGCT (Integrated Gate-Commutated Thyristor) semiconductor module designed for ABB medium-voltage power conversion systems. It is mainly used in high-power industrial drives, converters, and energy conversion equipment such as ABB ACS series medium-voltage drives.

1. Product Overview

2. Technical Parameters (Typical)

3. Product Features

High Voltage & High Current Capability

The 5SHY3545L0010 is designed for MW-level power conversion applications, providing high current handling capability and high blocking voltage suitable for medium-voltage converters.

Fast Switching Performance

IGCT technology combines:

• Low conduction losses of thyristors
• Fast turn-off capability similar to transistors
• High switching reliability under demanding industrial conditions

This allows efficient control of large electrical loads.

High Reliability Press-Pack Design

The press-pack structure provides:

• Excellent thermal transfer
• Mechanical robustness
• Improved fault tolerance
• Suitability for high-power converter stacks

4. Structural Composition

A typical ABB IGCT power assembly includes:

• 5SHY3545L0010 – Main IGCT semiconductor element
• 3BHB013088R0001 – Associated module assembly/order package
• Possible associated gate driver/control components such as ABB IGCT gate units depending on system configuration

In ABB medium-voltage drive systems, the IGCT module works together with gate drive electronics and control boards to form a converter phase leg.

5. Application Fields

Typical applications include:

• ABB ACS 5000 / ACS 6000 medium-voltage drives
• Large industrial motor control systems
• Mining equipment drives
• Marine propulsion systems
• Rolling mills
• Power conversion equipment
• Renewable energy converters
• Industrial power supplies

6. Advantages

• High power density
• Low switching and conduction losses
• Excellent thermal performance
• High overload capability
• Long service life in industrial environments
• Suitable for continuous heavy-duty operation

7. Maintenance & Replacement Notes

When replacing ABB 5SHY3545L0010 / 3BHB013088R0001, verify:

1. Complete part number and revision code
2. Matching gate driver type
3. Mechanical clamping force requirements
4. Cooling system condition
5. Converter firmware and protection settings

IGCT modules are precision power devices; incorrect matching can cause gate drive faults, overcurrent trips, or converter failure.

Conclusion

The ABB 5SHY3545L0010 (3BHB013088R0001) is a high-performance IGCT power module engineered for ABB’s high-power medium-voltage converter platforms. With its combination of high voltage capability, large current capacity, fast switching, and rugged press-pack construction, it is a key component in demanding industrial power conversion applications.
