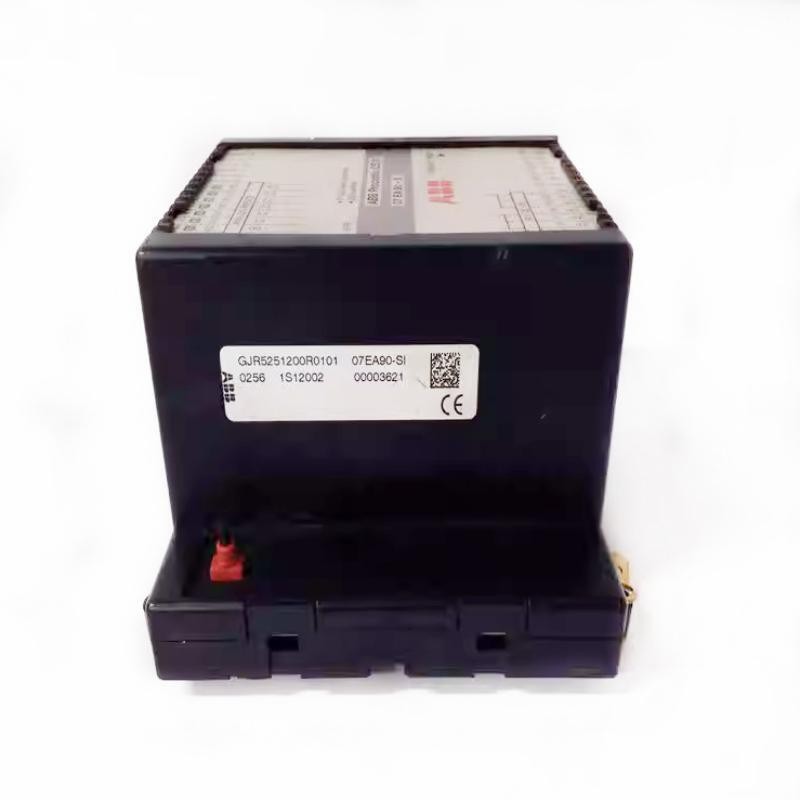

ABB 07EA90-SI GJR5251200R0101

The ABB 07EA90-SI, Order No. GJR5251200R0101, is an analog input module designed for the ABB Procontic CS31 automation system. It is used to acquire analog signals from field devices and transmit the processed data to the control system for monitoring, calculation, regulation, and process control.

The module is primarily intended for industrial automation installations using ABB's traditional Procontic CS31 control platform. It is particularly suitable for maintenance, repair, replacement, and spare-parts requirements in existing systems.

2. Technical Specifications

3. Product Features

• Analog Signal Acquisition: Designed to collect continuous process signals from field instruments.
• CS31 System Compatibility: Developed for use with ABB Procontic CS31 automation systems.
• Industrial Design: Suitable for continuous-duty industrial automation applications.
• Reliable Signal Processing: Converts field analog signals into data usable by the control system.
• Maintenance Friendly: Suitable for replacement and spare-parts applications in existing installations.
• Compact Modular Construction: Designed for integration into industrial automation and control cabinets.
• Process Monitoring Capability: Can be used for monitoring variables such as temperature, pressure, flow, and level.

4. Structural Composition

The 07EA90-SI module generally consists of the following functional sections:

1. Analog Input Interface
   Provides connections to field sensors and transmitters.
2. Signal Conditioning Circuit
   Conditions and filters incoming analog signals to improve signal quality.
3. A/D Conversion Circuit
   Converts analog signals into digital data for processing by the control system.
4. Control and Processing Circuitry
   Performs internal signal processing and module management.
5. System Bus Interface
   Provides communication between the I/O module and the Procontic CS31 control system.
6. Status and Diagnostic Functions
   Provides operating-status and fault-related information for troubleshooting.

5. Application Areas

The ABB 07EA90-SI can be used in a variety of industrial automation applications, including:

• Process automation
• Power and energy systems
• Oil and gas facilities
• Petrochemical plants
• Water and wastewater treatment
• Manufacturing production lines
• Machine automation
• Temperature monitoring
• Pressure monitoring
• Flow measurement
• Level monitoring
• Legacy PLC system maintenance and refurbishment

6. Replacement Considerations

When replacing an existing 07EA90-SI module, the following points should be carefully checked:

• Confirm the module model: 07EA90-SI / 07EA90-S
• Confirm the complete order number: GJR5251200R0101
• Verify the required analog input signal type and range.
• Check the terminal assignment and field wiring.
• Confirm compatibility with the existing Procontic CS31 configuration.
• Check the hardware revision and module version where applicable.
• Verify the existing PLC configuration before commissioning.

7. Conclusion

The ABB 07EA90-SI GJR5251200R0101 is a legacy analog input module for ABB Procontic CS31 automation systems. Its primary function is to acquire analog signals from industrial field devices and make the processed information available to the control system.
