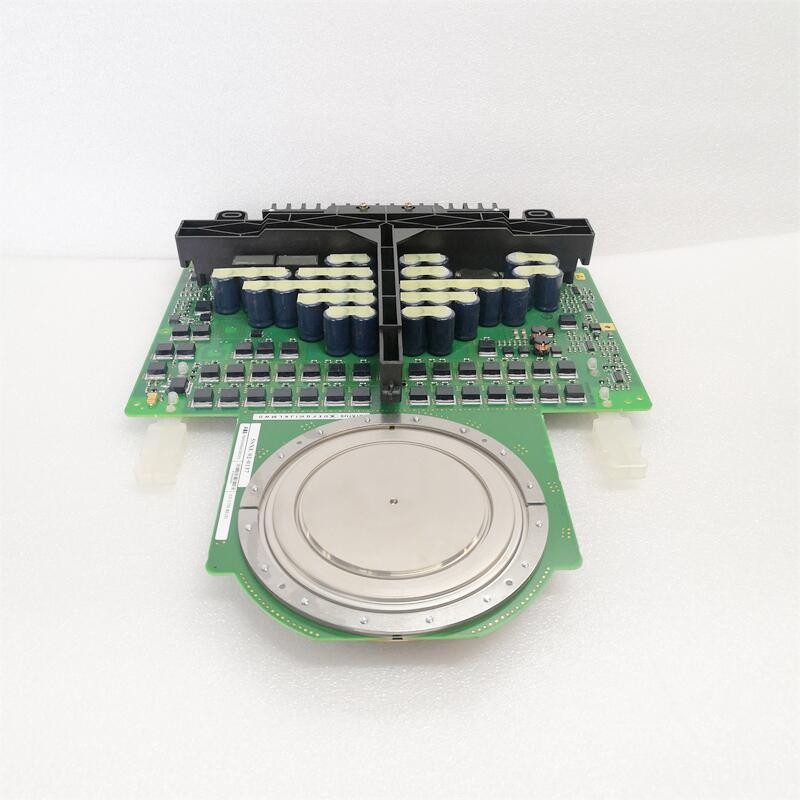

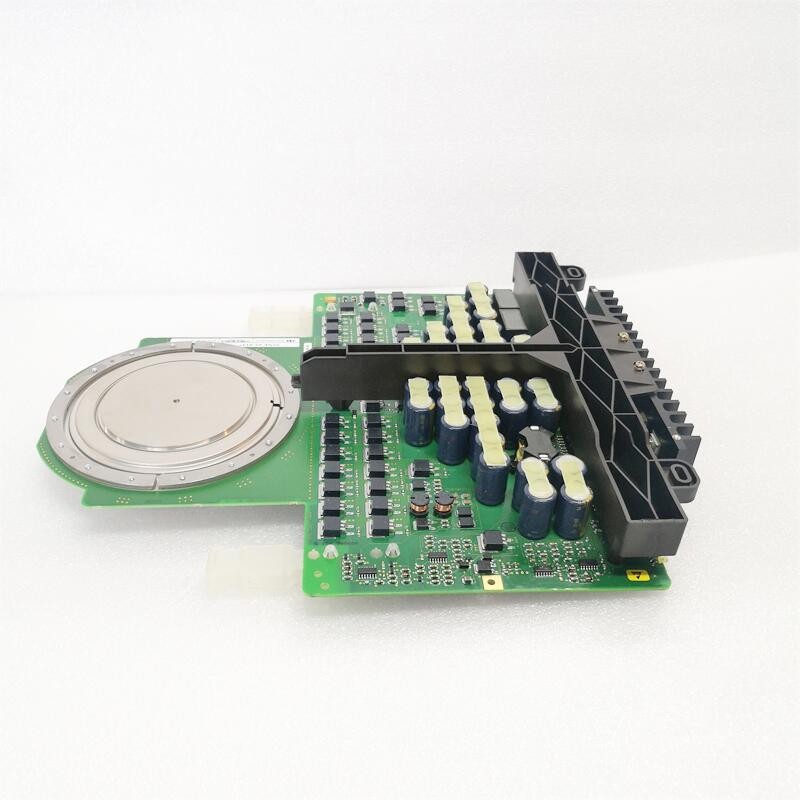

ABB 5SHY3545L0009 GVC750BE101

ABB 5SHY3545L0009 is a high-power IGCT (Integrated Gate-Commutated Thyristor) power semiconductor device designed for medium-voltage and high-power power conversion applications.

The device is identified by ABB part number 3BHB013085R0001 and is commonly associated with the GVC750BE101 gate unit / driver assembly, corresponding to 3BHE009681R0101.

It is designed for demanding industrial applications where high switching capability, low conduction losses, fast turn-off performance, and high operational reliability are required.

2. Basic Information

3. Key Features

High-Power Switching Capability

The 5SHY3545L0009 is designed for high-power switching applications and can be integrated into demanding industrial converter systems.

Low Conduction Losses

IGCT technology provides low conduction losses compared with many conventional high-power switching solutions, helping improve overall converter efficiency.

Fast Turn-Off Performance

The dedicated gate-drive system provides rapid and controlled switching, making the device suitable for high-performance power conversion applications.

High Reliability

The device is designed for industrial environments where stable operation and long service life are important.

Dedicated Gate-Drive Configuration

The GVC750BE101 provides the required gate-control interface for the IGCT, allowing the power semiconductor and control system to operate as an integrated switching solution.

4. Typical Technical Specifications

Typical published information associated with the 5SHY3545L0009 includes:

• Device Type: Asymmetric IGCT
• Voltage Class: Approximately 4.5 kV
• Typical On-State Voltage: Approximately 2.2 V at 3 kA
• Non-Repetitive Peak Current: Approximately 4 kA
• Typical Turn-Off Time: Less than approximately 3 μs
• Junction Temperature: Approximately -40°C to +125°C
• Technology: Integrated Gate-Commutated Thyristor
• Gate Control: Dedicated IGCT gate-driver system

Actual operating ratings depend on the converter design, cooling conditions, operating current, switching frequency, and application. The original ABB technical documentation should be used for final engineering verification.

5. GVC750BE101 Gate Unit

The GVC750BE101 is the associated gate-control/driver unit for the IGCT assembly.

Its main functions include:

• Receiving switching commands from the control system
• Generating the required gate-drive signals
• Controlling IGCT turn-on and turn-off
• Providing electrical isolation between control and power sections
• Supporting reliable high-power switching operation
• Coordinating the IGCT with the converter control system

The gate unit is therefore an important part of the overall IGCT switching system rather than simply a conventional control board.

6. Typical Applications

The ABB 5SHY3545L0009 IGCT can be used in various high-power industrial systems, including:

• Medium-voltage drives
• High-power motor drives
• Industrial inverters
• High-power converters
• AC/DC and DC/AC conversion systems
• Power-generation equipment
• Industrial energy conversion systems
• Grid-related power conversion equipment

It is particularly suitable for applications requiring high power density, efficient switching, and reliable continuous operation.

7. Installation and Replacement Considerations

When replacing the 5SHY3545L0009, the complete identification should be checked carefully:

5SHY3545L0009
3BHB013085R0001
GVC750BE101
3BHE009681R0101

Special attention should be given to:

• Electrical ratings
• Gate-driver compatibility
• Mechanical dimensions
• Cooling and heat-transfer requirements
• Electrical connections
• Gate-control interfaces
• Converter model and application

Similar-looking ABB IGCT devices or gate units should not be assumed to be directly interchangeable without verifying their electrical and control compatibility.

8. Product Advantages

The ABB 5SHY3545L0009 GVC750BE101 combination provides a high-power switching solution with several important advantages:

• High voltage capability
• High current switching capability
• Low conduction losses
• Fast switching response
• Reliable gate control
• Industrial-grade construction
• Suitable for medium-voltage applications
• Designed for demanding high-power converter systems

9. Conclusion

The ABB 5SHY3545L0009 GVC750BE101 is a specialized IGCT power semiconductor and gate-driver combination intended for medium-voltage and high-power industrial applications.

With its high-power switching capability, low conduction losses, fast turn-off performance, and dedicated gate-control architecture, it is well suited for medium-voltage drives, large motor systems, industrial converters, and high-power inverter equipment.
