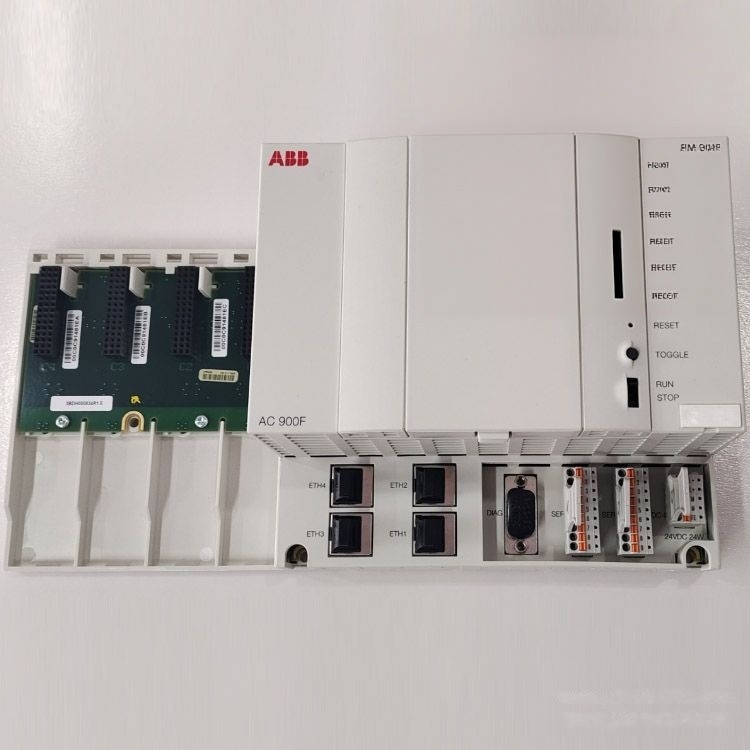

ABB PM904F 3BDH001002R0001

The ABB PM904F (3BDH001002R0001) is a high-performance CPU module for the ABB Freelance AC 900F distributed control system (DCS). It represents the high-end controller class of the AC 900F family and is designed for demanding industrial automation applications requiring fast processing, extensive communication capability, and high system availability.

As the central processing unit of a Freelance control station, PM904F executes control strategies, manages I/O communication, handles fieldbus integration, and provides the computing platform for process control applications.

---

Core Functions

1. High-speed process control execution

PM904F uses a PowerQUICC II Pro processor with an 800 MHz clock frequency, providing rapid execution of control logic and complex automation tasks. It achieves approximately 0.12 ms performance for 1000 Boolean operations.

Typical functions include:

• Continuous process regulation
• Logic sequencing
• PID control loops
• Alarm and event handling
• Data acquisition and processing
• Communication management

---

2. Large-scale I/O management

The controller is designed for medium-to-large process automation systems and can typically support around 1500 I/O points depending on application configuration.

It can connect with:

• S700 I/O modules
• Remote I/O stations
• Field transmitters
• Actuators
• Drives
• Third-party automation devices



---

3. Advanced communication capability

PM904F provides extensive communication resources:

• 4 Ethernet interfaces
• Modbus TCP support
• IEC 60870-5-104 telecontrol communication
• Serial communication interfaces
• Communication module expansion capability

It includes four slots for Communication Interface Modules, allowing integration of additional fieldbus interfaces such as PROFIBUS or CAN.

---

Design Features

1. High-performance controller architecture

The module combines:

• Embedded industrial CPU
• High-speed memory architecture
• Integrated Ethernet networking
• Expansion communication slots
• Optional redundancy capability

This architecture allows PM904F to serve as a reliable process controller for critical industrial systems.

---

2. Memory structure

The controller includes:

Memory Type	Capacity
Total controller memory	48 MB
Battery-buffered SRAM	16 MB
DRAM	32 MB
Application RAM available	16 MB



The battery-backed SRAM helps retain important controller data during power interruptions.

---

3. Industrial environment design

PM904F supports harsh industrial conditions:

• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• G3 corrosion protection compliance
• Industrial EMC compliance
• IP20 protection class



---

Hardware Composition

Component	Description
CPU	PowerQUICC II Pro processor
Clock speed	800 MHz
Controller memory	48 MB
Ethernet ports	4 × RJ45 Ethernet
Serial interfaces	3 × RS-232C (2 general + 1 service)
Power supply	External 24 V DC
Expansion slots	4 communication interface module slots
Backup battery	Lithium battery TA 951F
Optional display	TD 951F display unit



---

Typical Applications

ABB PM904F is commonly used in:

Power Generation

• Turbine auxiliary control
• Boiler and balance-of-plant systems
• Substation automation

Oil & Gas

• Refining process control
• Compressor stations
• Pipeline monitoring

Chemical & Petrochemical

• Continuous process control
• Batch automation
• Safety-related monitoring systems

Water Treatment

• Pumping stations
• Remote monitoring
• Distributed control networks

Manufacturing Industry

• Production line automation
• Energy management systems
• Plant-wide control platforms

---

Maintenance Considerations

1. Battery maintenance

The PM904F uses a lithium backup battery (TA 951F). Periodic inspection and replacement are recommended to prevent loss of retained data.

2. Firmware and software compatibility

Important points:

• Requires compatible Freelance engineering software
• Software version 2019 or higher is mandatory according to ABB documentation
• Operating system is loaded during software installation

---

3. Communication diagnostics

Regular checks should include:

• Ethernet link status
• Fieldbus communication quality
• Controller diagnostic messages
• Redundancy synchronization status

---

4. Spare strategy

For critical process plants:

• Keep a pre-configured spare CPU
• Store backup controller configuration
• Verify firmware compatibility before replacement

---

Overall Evaluation

The ABB PM904F 3BDH001002R0001 is a powerful and reliable industrial DCS controller CPU positioned at the top level of the Freelance AC 900F family. Its combination of 800 MHz processing power, 48 MB memory, four Ethernet interfaces, communication expansion capability, and redundancy support makes it suitable for large-scale and mission-critical automation systems.
