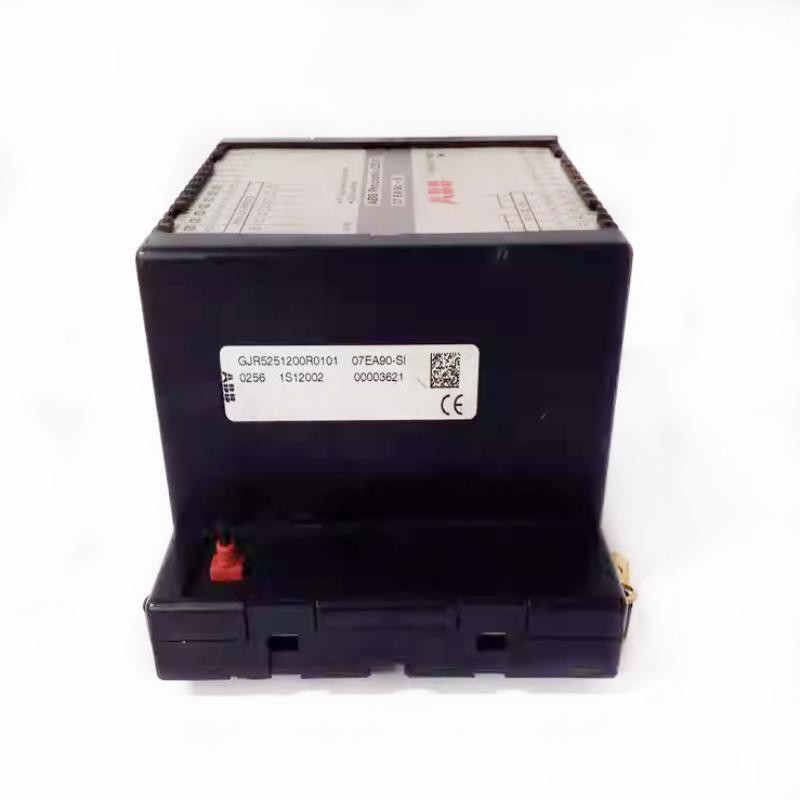

ABB 07EA90-SI

ABB 07EA90-SI (Order No. GJR5251200R0101) is an analog input module belonging to the ABB Procontic CS31 / Advant Controller 31 (AC31) automation family. It is designed for collecting analog field signals and transferring processed measurement data into PLC control systems for industrial monitoring and regulation.

1. Product Positioning

Product Type: Analog Input Module (AI Module)
Automation Platform: ABB Procontic CS31 PLC / AC31 series
Part Number: 07EA90-SI
Order Number: GJR5251200R0101
Function Category: Field signal acquisition and analog data conversion

The module serves as an interface between industrial sensors/transmitters and the PLC controller. It converts continuous analog signals such as current or voltage signals into digital values that the PLC CPU can process for control logic, alarms, and process regulation.

2. Core Functions

Analog Signal Acquisition

The 07EA90-SI receives analog measurement signals from field devices, including:

• Pressure transmitters
• Temperature transmitters
• Flow meters
• Level sensors
• Speed/position feedback devices

Typical industrial signals include:

• 4–20 mA current loops
• 0–20 mA signals
• Voltage-based analog signals (depending on configuration)

Signal Conversion

The module performs:

Analog Input → A/D Conversion → PLC Data Processing

This allows the PLC program to perform:

• Process monitoring
• Closed-loop control
• Alarm generation
• Data logging
• Operator display functions

3. Design Features

Industrial-Grade Reliability

Designed for continuous operation in industrial automation environments:

• Stable signal acquisition
• High noise immunity
• Long-term operation capability
• Compatibility with legacy ABB control systems

Modular Architecture

The module follows ABB's CS31 modular design concept:

• Easy replacement
• Simple cabinet integration
• Reduced downtime during maintenance

Diagnostic Capability

Typical features include:

• Module status indication
• Input fault monitoring
• Wiring/signal troubleshooting support

4. Hardware Composition

Main hardware elements typically include:

The module is installed as part of an ABB CS31 automation system and communicates through the system bus architecture.

5. Technical Parameters (Typical)

6. Typical Applications

Process Automation

Used for monitoring:

• Chemical process variables
• Water treatment parameters
• Boiler systems
• Manufacturing processes

Machine Automation

Applicable for:

• Pressure feedback
• Temperature monitoring
• Machine condition measurement
• Production line control

Energy Systems

Can be used in:

• Power plant auxiliary systems
• Motor monitoring
• Pump and compressor control systems

7. Maintenance Considerations

Signal Verification

Check:

• Sensor output range
• Loop current values
• Shielding and grounding
• Cable continuity

Module Diagnostics

Common troubleshooting steps:

1. Check PLC communication status
2. Verify module power supply
3. Confirm channel configuration
4. Test field signal input
5. Replace module if hardware failure is confirmed

Obsolescence Management

The 07EA90-SI belongs to ABB's older CS31 automation generation. For long-term operation, users should consider:

• Keeping spare modules
• Performing preventive testing
• Planning migration to newer ABB PLC platforms when required

8. Overall Evaluation

ABB 07EA90-SI GJR5251200R0101 is a reliable legacy analog acquisition module widely used in ABB Procontic CS31-based automation systems.

Strengths:

✔ Proven industrial reliability
✔ Simple integration with ABB legacy PLC systems
✔ Suitable for continuous process monitoring
✔ Easy replacement in existing installations

Limitations:

✘ Legacy product with limited new-system adoption
✘ Replacement availability depends on industrial spare-part markets

Overall Rating: ★★★★☆
A valuable maintenance component for existing ABB CS31 installations, especially where system migration is not immediately planned.
