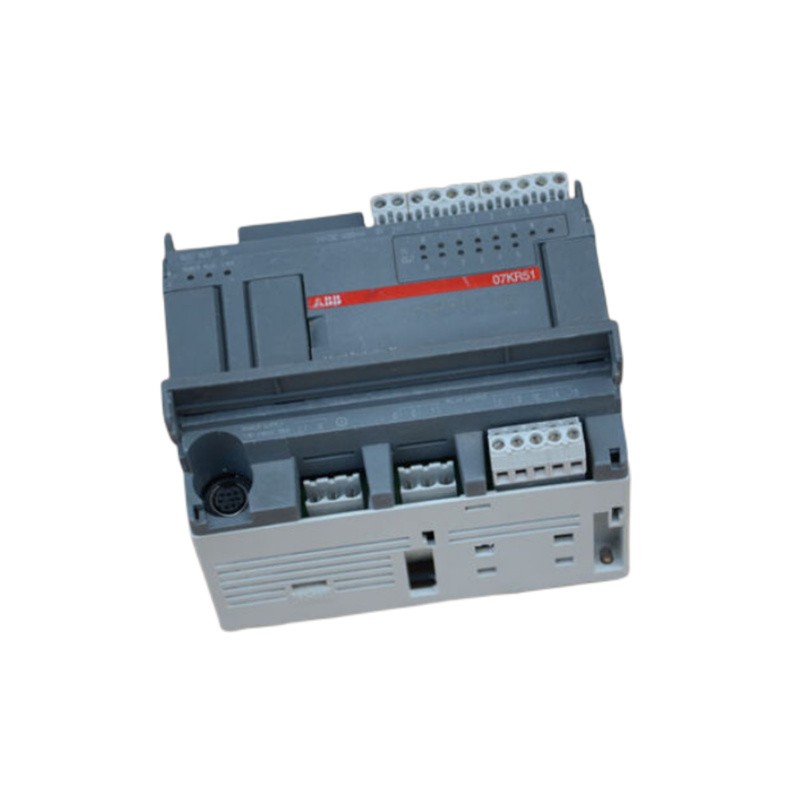

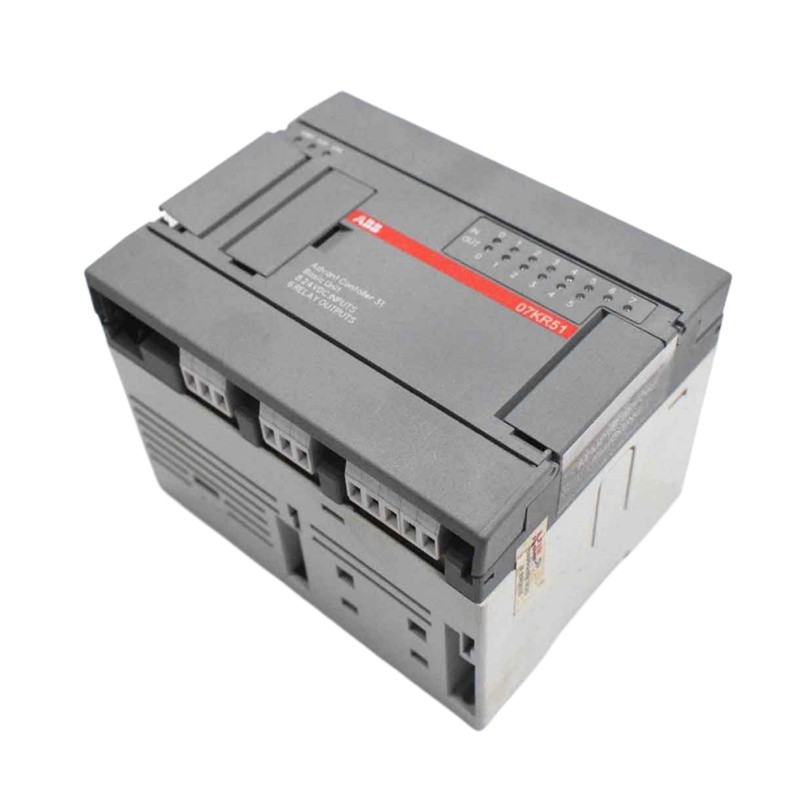

ABB 07KR51 220VDC 07KR51-V3.6 1SBP260011R1001

The ABB 07KR51-V3.6 (Order No. 1SBP260011R1001) is a compact Advant Controller 31 (AC31) series PLC basic unit designed for industrial automation and decentralized control applications. It belongs to ABB’s classic AC31/Procontic CS31 automation platform and is mainly used as a standalone PLC controller or as a master controller in a CS31 fieldbus network.

This unit integrates CPU processing, digital I/O, communication interfaces, and power supply functions into one compact DIN-rail mounted controller.

---

2. Core Functions

PLC Control Processing

• Executes user application programs stored in internal memory
• Handles logic control, sequencing, timing, counting, and machine automation tasks
• Supports decentralized control through ABB CS31 system bus communication

Digital Input Processing

• 8 × isolated digital inputs
• 24 VDC input level
• Compatible with common industrial sensors and switches
• Supports PNP/NPN input devices

Relay Output Control

• 6 × relay outputs
• Suitable for controlling:
  • Contactors
  • Solenoid valves
  • Motors starters
  • Alarm devices
  • Industrial actuators

Communication Capability

• Serial programming interface
• CS31 fieldbus communication capability
• Used for connection with ABB AC31 expansion modules and distributed I/O stations

---

3. Main Technical Parameters

Item	Specification
Manufacturer	ABB
Series	Advant Controller 31 (AC31)
Model	07KR51-V3.6
Order Number	1SBP260011R1001
Controller Type	PLC Basic Unit
Power Supply	120/230 VAC version (often listed for AC supply models)
Digital Inputs	8 × 24 VDC isolated inputs
Outputs	6 × relay outputs
Output Rating	Up to 250 VAC / 2 A relay switching
Program Memory	Approx. 34 kB class (depending on configuration/version)
Mounting	DIN rail
Protection Class	IP20
Operating Temperature	0…+55 °C
Dimensions	Approx. 120 × 93 × 84 mm
Weight	Approx. 0.8–1 kg

---

4. Design Features

Compact Integrated PLC Architecture

The 07KR51 combines:

• CPU module
• Power section
• Digital I/O
• Communication interface

This reduces cabinet space requirements compared with modular PLC architectures.

Industrial Reliability

Designed according to industrial automation standards, including IEC 61131-related PLC requirements. It supports continuous operation in factory environments with vibration and temperature constraints.

Flexible Expansion

The controller can be expanded with AC31 remote I/O modules, allowing distributed automation systems for larger machines and production lines.

---

5. Hardware Composition

The internal structure typically includes:

CPU Section

• Microprocessor control unit
• Program execution system
• Diagnostic functions

Memory Section

• User program storage
• Data memory area
• Retentive memory support depending on configuration

I/O Interface

• 8-channel digital input circuitry
• 6-channel relay output circuitry

Communication Interface

• Serial programming port
• CS31 system bus interface

Mechanical Structure

• DIN rail mounting housing
• Front LED status indicators:
  • POWER
  • RUN
  • ERROR
  • I/O status indication

---

6. Typical Applications

The ABB 07KR51 is commonly applied in:

Manufacturing Equipment

• Packaging machines
• Assembly lines
• Material handling systems

Building and Infrastructure Automation

• HVAC control
• Pump control
• Lighting systems

Process Automation

• Small process skids
• Water treatment equipment
• Utility control panels

Legacy ABB Automation Systems

• Replacement controller for existing AC31 installations
• Maintenance spare for older production equipment

---

7. Maintenance Considerations

Recommended Checks

Power Supply

• Verify stable input voltage
• Check terminal connections and grounding

I/O Inspection

• Confirm input sensor signals
• Check relay contact wear
• Monitor output switching reliability

Communication

• Inspect CS31 bus wiring
• Verify communication error indicators

Environmental Conditions

• Keep cabinet temperature within specification
• Avoid excessive dust, humidity, and vibration

Replacement Considerations

Because the AC31 platform is a legacy ABB PLC family, users should verify:

• Existing software compatibility
• Communication configuration
• I/O addressing
• Backup of PLC program before replacement

---

8. Overall Evaluation

The ABB 07KR51-V3.6 1SBP260011R1001 is a robust and proven compact PLC controller from ABB’s AC31 generation.

Advantages

• Integrated PLC design
• Reliable industrial operation
• Simple maintenance
• Good compatibility with ABB AC31 systems
• Suitable for small and medium automation tasks

Limitations

• Legacy platform
• Limited processing capability compared with modern ABB PLC families
• Replacement availability may become increasingly important

Overall Rating: ★★★★☆
A reliable choice for maintaining existing ABB AC31 automation systems, especially where system migration is not immediately planned.
