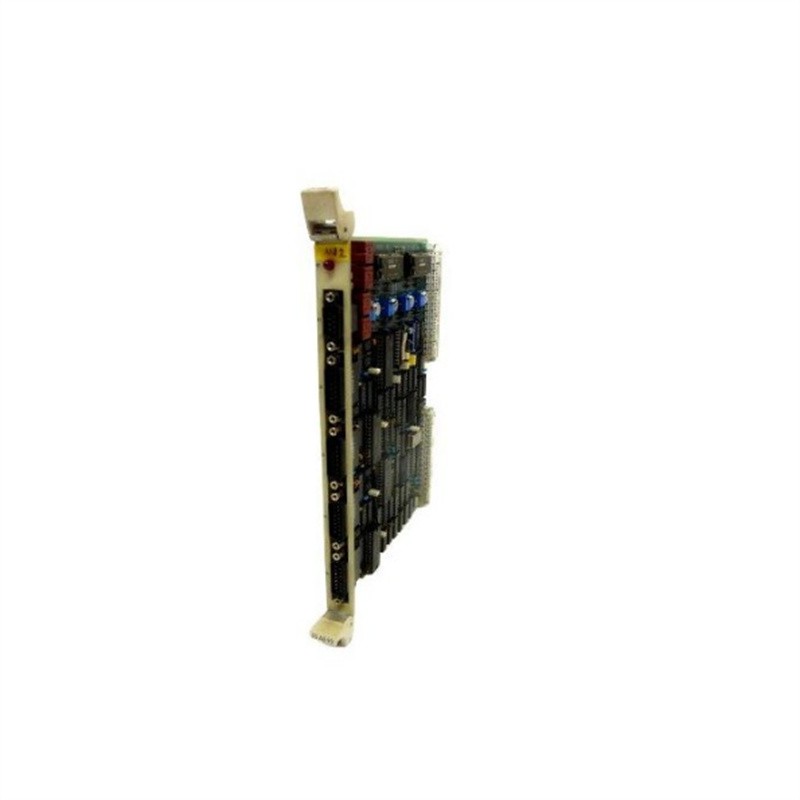

ABB 35AE92

ABB 35AE92 is a specialized axis control module used in ABB’s legacy Procontic T300 / DP800 PLC automation systems. It is designed for multi-axis motion control applications, providing PLC-based coordination of servo axes, positioning feedback, and motion status handling.

Product Positioning

• Manufacturer: ABB
• Model: 35AE92
• Typical Part Number: GJR372000005 (variant dependent)
• Product Type: Axis board / motion control module
• System Platform: ABB Procontic T300, DP800 PLC systems
• Main Role: Multi-axis positioning and motion coordination module

Core Functions

1. Multi-Axis Motion Control

• Controls up to four independent motion axes per module.
• Provides PLC access to:
  • Axis status information
  • Position actual values
  • Measurement values
  • Setpoint commands

2. Position Feedback Processing

The module exchanges motion data between the PLC CPU and axis electronics, allowing:

• Closed-loop positioning
• Synchronization of multiple axes
• Real-time monitoring of axis conditions

3. High-Speed Automation Control

Designed for applications requiring:

• Fast response
• Precise positioning
• Coordinated movement sequences

Design Features

• Modular PLC plug-in design
• Dedicated hardware for motion tasks instead of processing all motion calculations in the main CPU
• Optimized for ABB legacy automation architectures
• Supports deterministic axis communication through the PLC backplane/MPST bus

Hardware Composition

Typical functional blocks include:

The default PLC addressing configuration assigns the 35AE92 axis board to specific I/O memory areas (for example E500H/E520H depending on axis board position).

Typical Applications

ABB 35AE92 is mainly found in older industrial automation equipment such as:

• CNC machinery
• Robotics systems
• Automated assembly equipment
• Packaging machines
• Special-purpose production lines
• Legacy motion-control installations

Maintenance Considerations

Inspection

• Check module seating and connector condition.
• Verify PLC rack/backplane communication.
• Inspect axis feedback wiring.

Troubleshooting

Common fault areas:

• Loss of axis communication
• Incorrect addressing configuration
• Encoder/feedback signal problems
• PLC program compatibility issues

Replacement Notes

When replacing a 35AE92:

• Confirm exact hardware revision.
• Verify firmware/application compatibility.
• Check PLC configuration database and axis parameter settings.

Overall Evaluation

ABB 35AE92 is a legacy but specialized motion-control module with strong value in maintaining existing Procontic T300/DP800 systems. Its main advantage is reliable multi-axis coordination and deterministic control in industrial environments. However, because it belongs to an older ABB automation generation, modernization projects may consider migration to newer ABB motion platforms when spare parts availability or system integration becomes a concern.
