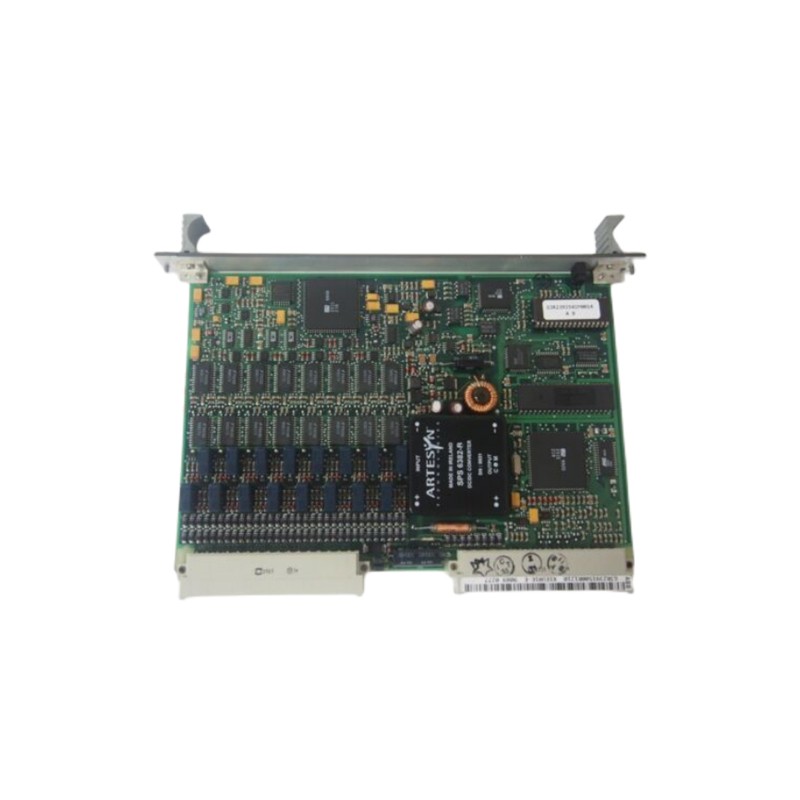

ABB 81EU01E-E GJR2391500R1210

1. Product Positioning

Product Type: Universal Input Module
Manufacturer: ABB
Model: 81EU01E-E
Order Number: GJR2391500R1210
System Family: ABB PROCONTROL P13/P14

The ABB 81EU01E-E is a universal input acquisition module designed for ABB PROCONTROL process control systems. It serves as an interface between field instruments and the control system, collecting process signals and transmitting processed data to the higher-level automation system.

It is mainly used in power plants and industrial process applications where reliable signal acquisition and long-term operation are required.

---

2. Core Functions

Multi-Signal Input Acquisition

The 81EU01E-E provides flexible signal acquisition capability for different field devices, including:

• Digital binary signals
• Analog process signals
• Measurement transmitters
• Industrial sensors

The module performs:

• Signal conditioning
• Analog/digital conversion
• Signal processing
• Communication with the PROCONTROL system bus

---

Channel Processing Capability

Typical characteristics:

Parameter	Specification
Module Type	Universal Input Module
Number of Channels	16 input channels
Signal Type	Analog and Binary inputs
System Interface	ABB PROCONTROL bus
Application Level	Field signal acquisition

---

3. Design Features

Flexible Configuration

The module can be configured according to application requirements. Input functions and parameters are stored in non-volatile memory (EEPROM), allowing configuration retention after power loss.

---

Fast Signal Processing

Typical processing times:

Signal Type	Processing Time
Binary input signal	Approx. 5 ms
Analog input signal	Approx. 80 ms
Temperature measurement	Approx. 320 ms

This allows the module to support both fast switching signals and slower process measurement applications.

---

High Industrial Reliability

The 81EU01E-E is designed for harsh industrial environments and provides:

• High electrical noise immunity
• Stable long-term operation
• Protection against electromagnetic interference
• Reliable communication within PROCONTROL systems

---

4. Hardware Composition

The main hardware components include:

• Field signal input interface
• Signal conditioning circuits
• Analog/digital conversion circuitry
• Microprocessor-based processing unit
• EEPROM parameter storage
• PROCONTROL communication interface

Mechanical Characteristics

Item	Specification
Width	Approx. 20 mm
Height	Approx. 261 mm
Depth	Approx. 198 mm
Weight	Approx. 0.5 kg

---

5. Typical Applications

Power Generation

Commonly installed in:

• Thermal power plants
• Boiler control systems
• Turbine auxiliary control systems
• Generator monitoring systems

---

Industrial Process Automation

Applications include:

• Chemical plants
• Water treatment facilities
• Energy management systems
• Continuous production processes

---

System Modernization and Maintenance

The module is widely used for:

• ABB PROCONTROL system maintenance
• Replacement of aging I/O modules
• Extension of existing automation systems
• Spare part support for legacy installations

---

6. Maintenance Considerations

Replacement Requirements

Before replacing an 81EU01E-E module, verify:

• PROCONTROL system version compatibility
• Exact module order number
• Hardware revision
• Input configuration parameters
• Stored EEPROM settings

---

Troubleshooting Points

Common inspection items:

1. Check module power supply status
2. Verify communication bus operation
3. Inspect field wiring and terminals
4. Check diagnostic indicators/LED status
5. Confirm software configuration consistency

---

Storage Recommendations

For long-term storage:

• Keep in anti-static packaging
• Avoid moisture and dust exposure
• Store in controlled temperature conditions
• Perform periodic inspection before installation

---

7. Overall Evaluation

Category	Evaluation
Reliability	★★★★★
Industrial Robustness	★★★★★
Signal Flexibility	★★★★☆
Maintenance Complexity	★★★☆☆
Availability as Spare Part	★★★☆☆

---

Summary

The ABB 81EU01E-E GJR2391500R1210 Universal Input Module is a reliable I/O component for the ABB PROCONTROL P13/P14 automation platform. It provides flexible acquisition of analog and binary field signals with robust industrial performance, making it suitable for power generation and continuous process industries.

Although it belongs to an older ABB control generation, the module remains important for legacy system maintenance, retrofit projects, and plant life-extension programs. When replacing this module, always verify the exact part number (GJR2391500R1210), hardware revision, and system configuration to ensure compatibility.
