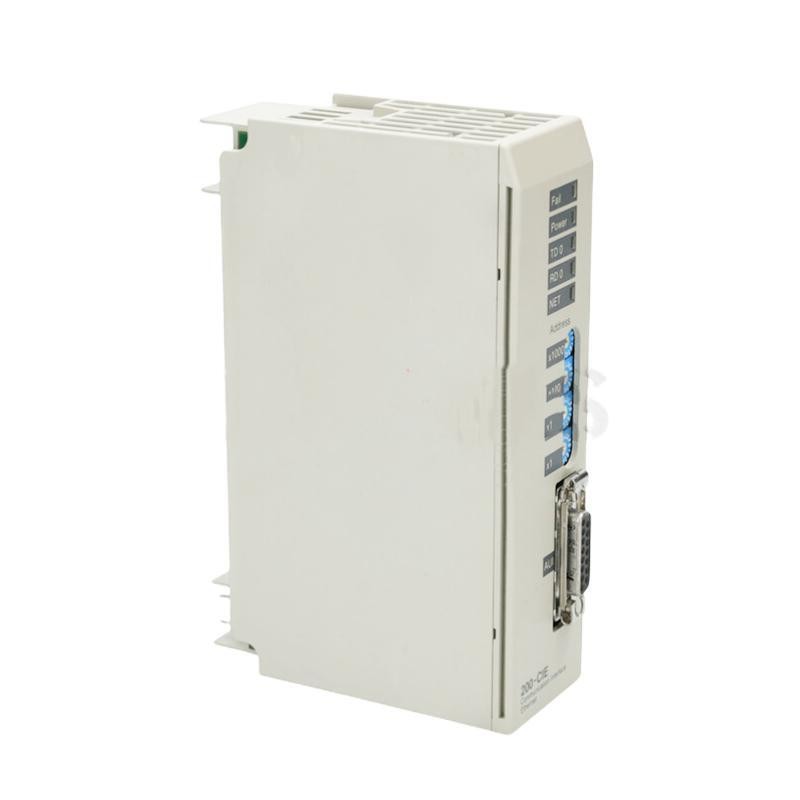

ABB 200-CIE

ABB 200-CIE is an Ethernet Communication Interface module for ABB’s legacy Series 200 / SattCon / SattLine control systems. It provides one Ethernet communication channel and is designed to connect the controller system to an Ethernet network. ABB documentation identifies it specifically as a central-system communication interface.

Product Positioning

The 200-CIE is a dedicated IEEE 802.3 Ethernet communication interface, rather than an I/O module or CPU. It was used in older ABB Series 200-based automation architectures to provide Ethernet connectivity for controller-level communication.

Core Functions

• 1 × Ethernet communication channel
• IEEE 802.3 Ethernet
• Communication protocols include SattBus and MMS
• Provides the communication logic required for Ethernet networking
• Supports connection to an external Ethernet transceiver through an AUI interface
• Network address configured using rotary switches
• Battery-backed buffer memory helps retain communication-related data during power interruptions.

Design Features

The 15-pin AUI connector is particularly important: the 200-CIE does not simply provide a modern RJ45 Ethernet port. An external Ethernet transceiver/MAU is required for the network connection.

Hardware Composition

The module includes:

1. Ethernet communication circuitry
2. AUI interface
3. External 24 V DC power circuitry
4. Rotary network-address switches
5. Status LEDs
6. Battery-backed memory
7. Series 200 backplane interface

ABB documentation specifies approximate dimensions of H163 × W45 × D91 mm, excluding connectors and snap locks, with a weight of about 0.41 kg.

Typical Applications

The 200-CIE was typically used in:

• ABB Series 200 PLC/control systems
• SattCon 200 systems
• SattLine control systems
• Legacy industrial Ethernet networks
• Controller-to-supervisory-system communication
• Communication between older ABB control platforms and plant-level Ethernet systems

It belongs to ABB's older Satt control-system family; ABB continues to provide documentation and support information for this heritage platform.

Maintenance Considerations

Because this is a legacy communication module, particular attention should be paid to:

• Backup battery condition
• AUI cable and external MAU/transceiver
• 24 V DC supply stability
• Rotary address-switch settings
• Ethernet communication LEDs
• Compatibility with the existing SattLine/SattCon software and network architecture

The external AUI transceiver and cable are especially important when replacing a 200-CIE, because simply connecting a modern RJ45 Ethernet cable directly to the module is not sufficient.

Overall Evaluation

ABB 200-CIE is a legacy Ethernet communication interface for Series 200 control systems. Its main value today is maintaining or repairing existing ABB SattCon/SattLine installations rather than building new Ethernet systems. The key characteristics are 10 Mbit/s Ethernet, one channel, AUI connection, external 24 V DC supply, and compatibility with the Series 200 architecture.
