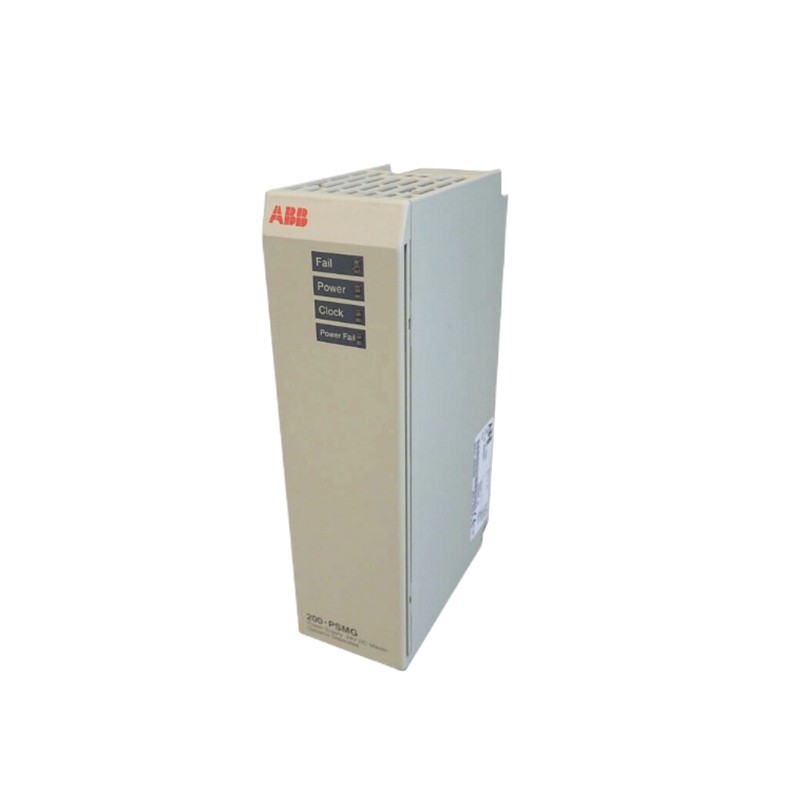

ABB 200-PSMG

ABB 200-PSMG is the master DC/DC power supply unit for the ABB Series 200 / Advant Controller 250 platform. It converts the external 24 V DC supply into the internal supply used by the controller, central I/O and related Series 200 modules. ABB documentation specifies that one 200-PSMG is always required in a system; additional 200-PSSG units can be added when higher power capacity is needed.

Product Positioning

The 200-PSMG is not a general-purpose industrial power supply. It is a dedicated master power module for the Series 200 backplane system, providing regulated internal power and system clock functions.

Core Functions

• Converts 24 V DC input into approximately 7–9 V DC for the Series 200 internal power system.
• Supplies power through the 200-BPN backplane to central-system and I/O modules.
• Provides the system clock output at 4, 6, 8 or 12 MHz, automatically selected according to system configuration.
• Provides power-status and fault indication.
• Provides 500 V AC rms galvanic isolation between input and output.

Key Parameters

These values are from ABB's Series 200 technical documentation.

Design Features

The most important feature is its master/slave power architecture. The 200-PSMG acts as the master supply, while 200-PSSG modules can be added to increase available internal power. This makes the Series 200 power system scalable according to the number of installed modules.

The front indicators include Power, clock-output and fault/power-fail indications, which are useful for rapid troubleshooting.

Hardware Composition

A typical Series 200 power arrangement consists of:

24 V DC external supply → 200-PSMG master supply → Series 200 backplane → CPU / communication / I/O modules

For larger configurations:

24 V DC → 200-PSMG + 200-PSSG slave supplies → Series 200 system

ABB specifies that the internal and external current loads should be calculated when determining the required number of power-supply modules.

Typical Applications

The 200-PSMG is typically found in legacy ABB Advant Controller 250 / Series 200 automation systems, supporting:

• PLC/control-system power distribution
• Central I/O systems
• Communication modules
• Industrial process-control systems
• Legacy plant automation installations

Maintenance Considerations

When troubleshooting a 200-PSMG, check:

1. 24 V DC input is within the specified range.
2. Input fuse and wiring are intact.
3. Power LED is operating normally.
4. Fail / Power Fail LEDs are not indicating a fault.
5. Backplane and 200-BPP connections are secure.
6. Total system load has not exceeded the available capacity.
7. If the system contains 200-PSSG units, verify their configuration and load sharing.

A failure of the 200-PSMG can affect multiple Series 200 modules simultaneously, so it should be distinguished from an individual I/O or CPU failure.

Overall Evaluation

ABB 200-PSMG is a dedicated master power-supply module rather than an ordinary 24 V power supply. Its main role is to provide the regulated internal power and clock infrastructure required by the Series 200/Advant Controller 250 platform. Its 200-PSSG expansion capability makes the architecture suitable for larger configurations, but the module belongs to a legacy ABB automation generation, so replacement, repair, and compatibility should be checked carefully before modernization.
