ABB 1784-KT
The ABB 1784-KT is actually an Allen-Bradley (Rockwell Automation) legacy communication interface module, not an ABB-developed product. It is an ISA-bus communication card designed to allow industrial computers, programming terminals, and workstations to communicate with Allen-Bradley PLC systems through Data Highway Plus (DH+) and PLC serial networks.
The module was widely used in older PLC-2, PLC-3, and PLC-5 automation systems as a PC-side communication interface before modern PCI, Ethernet, and USB communication adapters became common.
2. Product Parameters
| Parameter |
Specification |
| Product Type |
Communication Interface Module |
| Manufacturer |
Allen-Bradley / Rockwell Automation |
| Model |
1784-KT |
| Bus Interface |
ISA 8-bit / 16-bit expansion slot |
| Network Interface |
Data Highway Plus (DH+) |
| Supported PLC Networks |
PLC-2 Serial, PLC-3 Serial, DH+ |
| External Connector |
62-pin D-shell connector |
| DH+ Communication Speed |
57.6 kbps |
| PLC Serial Speed |
9600 baud / 19.2 kbps |
| Power Supply |
+5 VDC @ 0.4 A; ±12 VDC @ 0.04 A |
| Power Consumption |
Approx. 2 W (+5 V), 0.48 W (±12 V) |
| Operating Temperature |
0…55 °C |
| Humidity |
5…95% RH non-condensing |
3. Core Functions
3.1 DH+ Network Communication
The primary function of the 1784-KT is providing a computer-to-PLC communication bridge through the Allen-Bradley Data Highway Plus network.
Typical communication tasks include:
- PLC program upload/download
- Online PLC monitoring
- Data table access
- HMI/SCADA communication
- PLC diagnostics
- Remote controller access
The card allows a computer to operate as an active node on a DH+ network.
3.2 PLC Controller Connectivity
The module supports communication with legacy Allen-Bradley controller families:
- PLC-2
- PLC-3
- PLC-5
- Related industrial terminals and workstations
3.3 Industrial Programming Interface
Before modern communication adapters such as Ethernet/IP modules, the 1784-KT was commonly used for:
- PLC maintenance stations
- Factory programming terminals
- Engineering workstations
- Industrial PCs running DOS/Windows-based programming software
4. Design Features
4.1 ISA Expansion Card Architecture
The 1784-KT uses a classic ISA computer expansion design:
- Direct installation inside industrial PCs
- Hardware interrupt configuration
- Memory address selection
- Low-level communication control
This design matched the computer platforms commonly used in industrial automation systems of the 1980s and 1990s.
4.2 Hardware Configuration
Configuration is performed through onboard settings:
- Memory address selection
- Interrupt selection
- Communication parameters
Typical supported interrupts include:
4.3 High Reliability Industrial Design
Features include:
- Industrial temperature capability
- Robust communication circuitry
- Dedicated hardware interface
- Long-term operation in factory environments
5. Hardware Composition

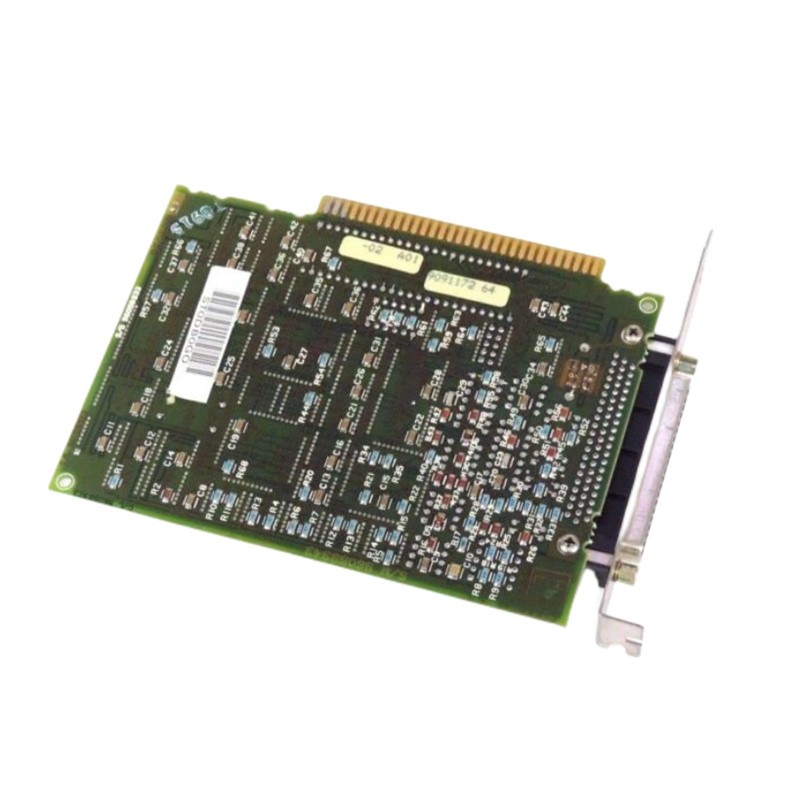

The 1784-KT consists of several major sections:
1. ISA Bus Interface
Responsible for:
- PC motherboard communication
- Memory mapping
- Interrupt handling
- Data transfer
2. Communication Controller Circuit
Handles:
- DH+ protocol processing
- PLC communication timing
- Serial communication management
3. External Communication Port
A 62-pin D-shell connector provides connection to:
- DH+ network cabling
- PLC communication cables
- Allen-Bradley communication accessories
4. Configuration Hardware
Includes:
- DIP switches
- Address selection circuits
- Interrupt configuration components
6. Typical Applications
6.1 PLC Programming Stations
Used with engineering computers for:
- PLC logic editing
- Online troubleshooting
- Controller maintenance
6.2 Factory Automation Systems
Commonly found in:
- Automotive manufacturing
- Packaging machinery
- Process plants
- Material handling systems
6.3 Legacy System Migration
Today, remaining 1784-KT cards are mainly used for:
- Maintaining old PLC-5 installations
- Supporting legacy production lines
- Data recovery from obsolete automation systems
7. Maintenance Considerations
Hardware Maintenance
Recommended checks:
- Inspect ISA connector contacts
- Check oxidation on edge connectors
- Verify cable condition
- Confirm correct DIP switch configuration
Communication Troubleshooting
Common problems:
No PLC Communication
Possible causes:
- Incorrect DH+ node address
- Wrong IRQ setting
- Memory conflict
- Damaged communication cable
Intermittent Communication
Possible causes:
- Aging ISA hardware
- Electrical noise
- Poor grounding
- Network termination issues
Storage Recommendations
Because the module uses CMOS-sensitive components:
- Use anti-static protection
- Store in ESD-safe packaging
- Avoid touching connector pins directly
8. Comprehensive Evaluation
The Allen-Bradley 1784-KT represents an important generation of industrial communication hardware. Its strengths include:
✅ Reliable DH+ connectivity
✅ Direct PLC programming capability
✅ Proven industrial durability
✅ Compatibility with legacy PLC systems
