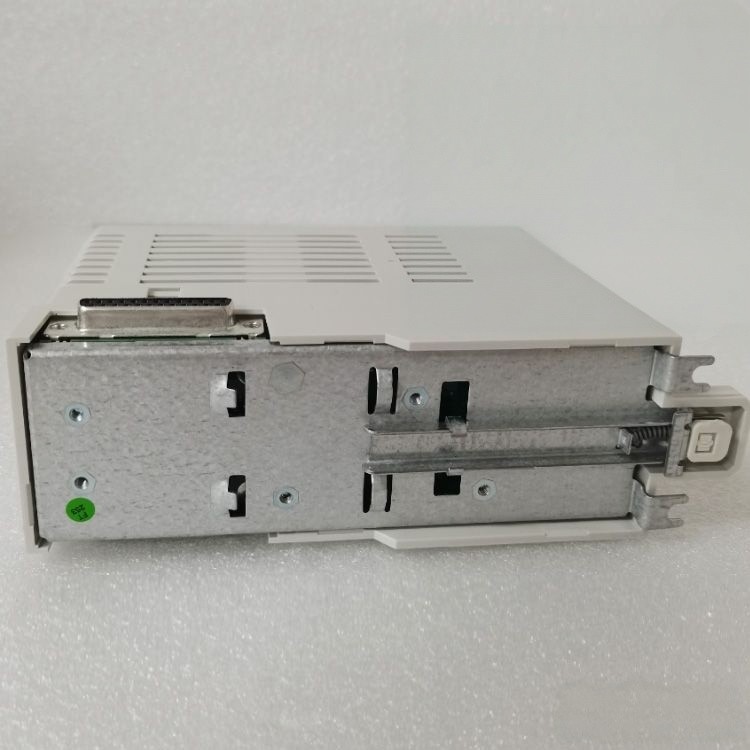

ABB CI868K01 3BSE048845R1

The ABB CI868K01 (3BSE048845R1) is an IEC 61850 communication interface module designed for the ABB AC 800M controller platform and System 800xA DCS environment. It provides a standardized communication bridge between process automation systems and electrical substation devices, enabling seamless integration with intelligent electronic devices (IEDs), protection relays, and power automation systems.

The module is mainly used in applications where industrial control systems need to exchange real-time electrical data using the IEC 61850 communication standard, supporting modern substation automation and power management solutions.

Product Parameters

Core Functions

1. IEC 61850 Network Integration

The CI868K01 enables AC 800M controllers to communicate with IEC 61850-compliant devices, including:

• Protection relays
• Bay controllers
• Intelligent electronic devices (IEDs)
• Substation automation equipment

It allows process control systems and electrical automation systems to operate within a unified communication architecture.

2. MMS Communication

The module supports MMS (Manufacturing Message Specification) communication for:

• Real-time monitoring
• Status information exchange
• Measurement data acquisition
• Control commands between systems

3. GOOSE Communication

Through IEC 61850 GOOSE messaging, the CI868K01 supports fast peer-to-peer signal exchange for applications such as:

• Protection interlocking
• Trip signals
• Electrical equipment status exchange
• High-speed automation logic

ABB documentation specifies that one CI868 interface can support up to 120 IEDs for GOOSE communication and 40 IEDs for MMS communication (depending on configuration).

Design Features

High-Speed Ethernet Communication

The CI868K01 uses Ethernet-based IEC 61850 communication, providing reliable data exchange between control systems and electrical automation devices.

Modular AC 800M Architecture

The module connects through ABB’s CEX-Bus expansion interface and is installed using the dedicated TP867 baseplate, allowing flexible expansion of AC 800M controller systems.

Industrial Reliability

Designed for continuous industrial operation, the module provides:

• Stable network communication
• Cabinet-level installation
• Long-term availability for DCS systems
• Easy integration into ABB automation environments

Hardware Composition

The CI868K01 package consists of:

CI868 Communication Interface Module

Main communication unit responsible for:

• IEC 61850 protocol processing
• Ethernet communication
• Data exchange between AC 800M and external devices

TP867 Baseplate

Provides:

• Mechanical mounting support
• Ethernet connection interface
• Connection to the AC 800M controller expansion bus

The complete package is supplied as CI868 + TP867, corresponding to ABB order number 3BSE048845R1.

Typical Applications

Power Plants

Used for integrating:

• Generator protection systems
• Electrical monitoring equipment
• Switchgear automation systems

Substation Automation

Typical applications include:

• IEC 61850-based substations
• Relay communication networks
• Electrical control and monitoring systems

Industrial DCS Systems

Applied in industries such as:

• Oil & gas
• Chemical processing
• Metallurgy
• Energy production

The module allows ABB System 800xA process control systems to communicate directly with electrical automation equipment.

Maintenance Considerations

• Ensure Ethernet communication cables and connectors remain clean and properly secured.
• Check module diagnostic information through ABB engineering tools.
• Verify IEC 61850 configuration files and communication settings after system modifications.
• Maintain proper cabinet temperature and ventilation.
• Confirm compatibility of firmware and System 800xA versions before replacement.
• Replace faulty modules with the same ABB part number to avoid configuration mismatch.

Overall Evaluation

The ABB CI868K01 3BSE048845R1 is a key communication component for integrating ABB AC 800M controllers with IEC 61850 electrical automation networks. Its support for MMS and GOOSE communication makes it suitable for modern power automation applications requiring fast, reliable, and standardized data exchange.
