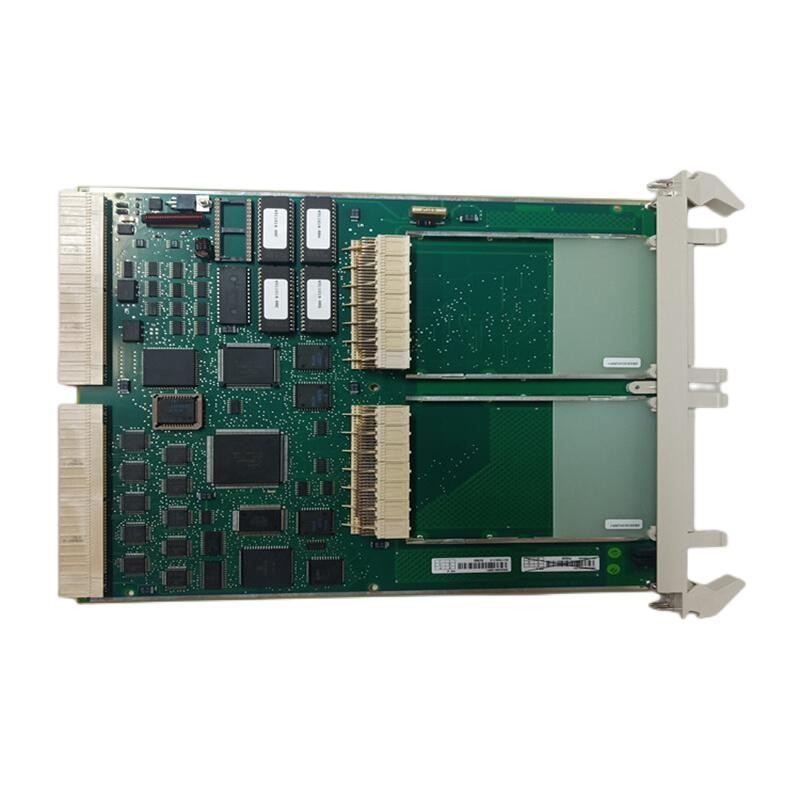

ABB 3BSE008105R1 SC560

The ABB SC560 (3BSE008105R1) is a Submodule Carrier with Local CPU designed for ABB industrial automation control systems. It functions as a modular hardware carrier and communication interface, providing local processing capability for connected submodules within ABB control architectures.

SC560 is mainly used in ABB legacy automation platforms where distributed I/O processing, modular expansion, and reliable system communication are required. It is an important spare component for maintaining existing ABB control installations.

Core Functions

• Submodule Carrier Function

  SC560 provides the mechanical and electrical platform for mounting compatible ABB submodules, allowing flexible configuration of automation functions.

• Integrated Local CPU

  The module includes a local CPU, enabling localized signal processing and communication management to reduce the processing burden on the main controller.

• Communication Interface

  As part of ABB control architectures, SC560 provides the connection structure between installed submodules and the overall control system.

• Modular System Expansion

  Supports customized automation configurations by allowing different functional submodules to be installed according to application requirements.

Design Features

• Compact Industrial Design

  SC560 adopts a slim modular design suitable for cabinet installation, with a reported dimension of approximately 291 mm × 300 mm × 30 mm and a net weight of about 0.76 kg.

• High Reliability for Continuous Operation

  Designed for industrial automation environments, the module supports long-term operation in process industries, power generation, and infrastructure control applications.

• Easy Replacement for Legacy Systems

  The 3BSE008105R1 version is commonly maintained as a replacement spare part for existing ABB installations where compatibility with the original configuration is required.

• Modular Architecture

  The carrier structure allows engineers to maintain and expand installed systems without replacing the complete control platform.

Hardware Composition

Typical Applications

ABB SC560 3BSE008105R1 is commonly applied in:

• Power Generation Systems

  Used as part of automation and monitoring systems in power plants.

• Process Industries

  Supports distributed control applications in chemical, oil & gas, and manufacturing facilities.

• Industrial Automation Systems

  Provides modular control expansion and communication functions for installed ABB platforms.

• Infrastructure Control

  Suitable for long-life automation systems requiring replacement of discontinued or legacy hardware.

Maintenance Considerations

• Verify the exact part number 3BSE008105R1 before replacement.
• Confirm the installed submodule configuration, rack position, and system documentation.
• Backup existing control configuration before hardware replacement.
• Check local CPU operation, communication status, and submodule recognition after installation.
• For exchange units, follow ABB return and replacement requirements when applicable.

Overall Evaluation

The ABB SC560 3BSE008105R1 is a specialized automation hardware component combining a submodule carrier and local CPU in a compact industrial package. It is designed for maintaining and expanding ABB control systems that rely on modular architecture. For users operating ABB legacy automation platforms, SC560 provides a practical replacement solution to maintain system availability and extend equipment service life.
