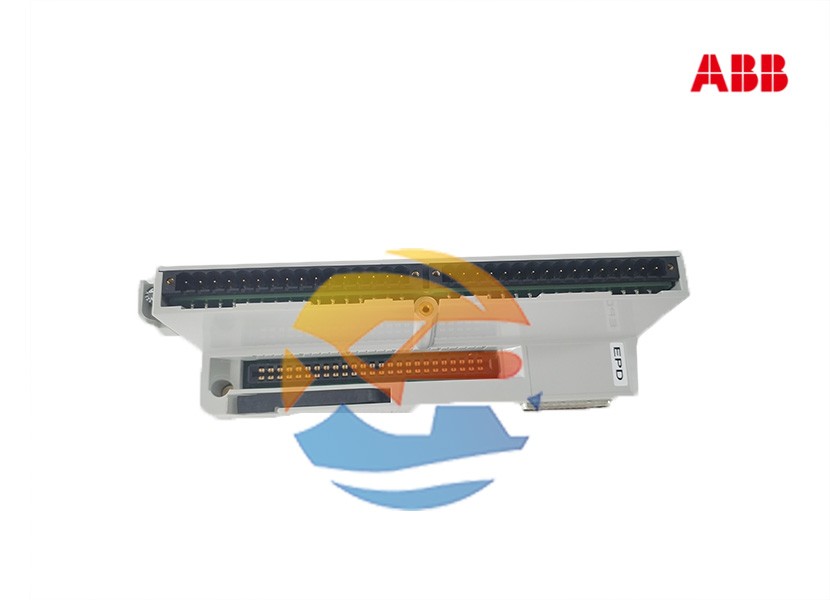

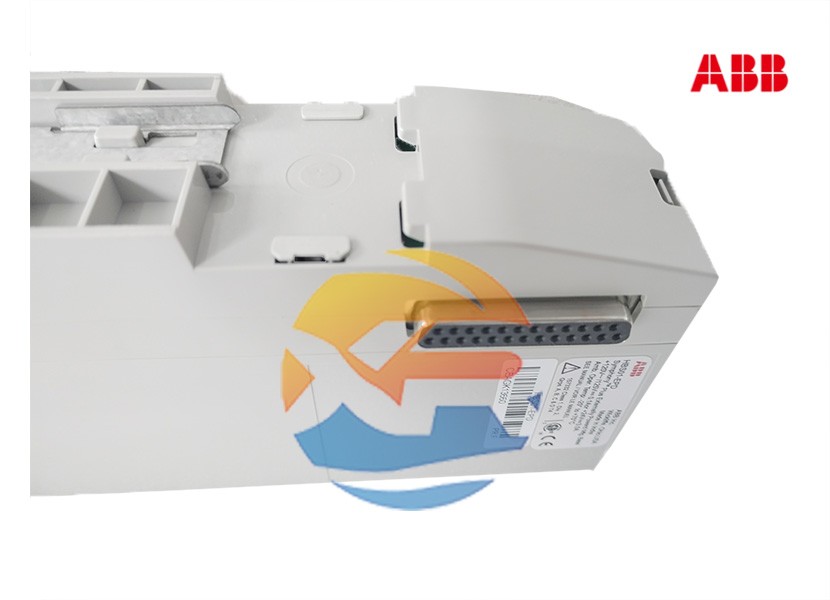

ABB HBS01-EPD Overview

Product Positioning:

The ABB HBS01-EPD is an I/O MTU (Module Terminal Unit) from the ABB Symphony® Plus series. It is designed to provide power supply, signal access, and wiring space for digital I/O modules in field installations.

Channel Count:

Fixed 16 channels (same configuration as the HBS02-EPD model).

Supported I/O Modules:

Compatible with SD Series digital I/O modules (such as DI01, DI02, DI03, DI04, DO01, DO02, DO05, etc.), which can be directly plugged into the 16-point terminal base.

Redundancy and Hot-Swap:

Single (non-redundant) configuration; hot-swap functionality is not supported.

Dimensions and Weight

(Reference to HBS01-FPH in the same series):
Width 45 mm, Depth 86.5 mm, Height 202.5 mm, Weight approx. 288 g.

Environmental Operating Range:

Operating temperature: -40 °C to +70 °C

Storage temperature: -40 °C to +85 °C

Relative humidity: 20 % to 95 % (non-condensing)

Protection rating: IP20

Certifications and Compliance:

Complies with RoHS and WEEE environmental directives.
Meets IEC/EN 61000-6-2 and -6-4 EMC standards.
CE marked for conformity.

Typical Applications:

Used in process automation, process control systems, plant-level I/O aggregation, and field signal wiring space allocation (Horizontal Insertion System).
