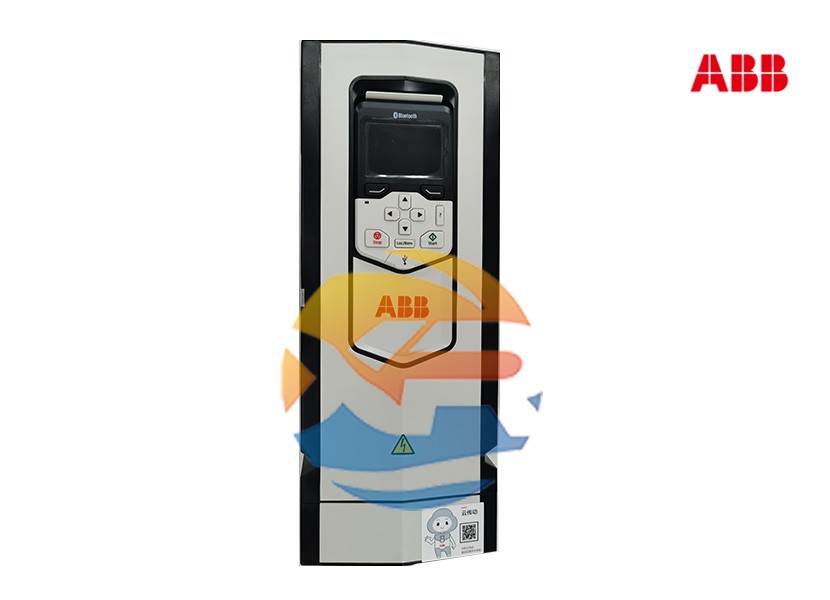

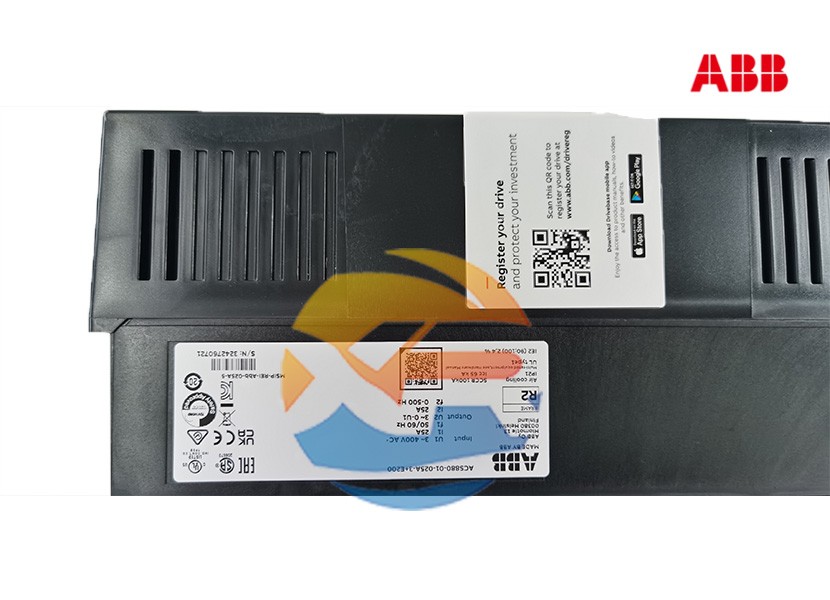

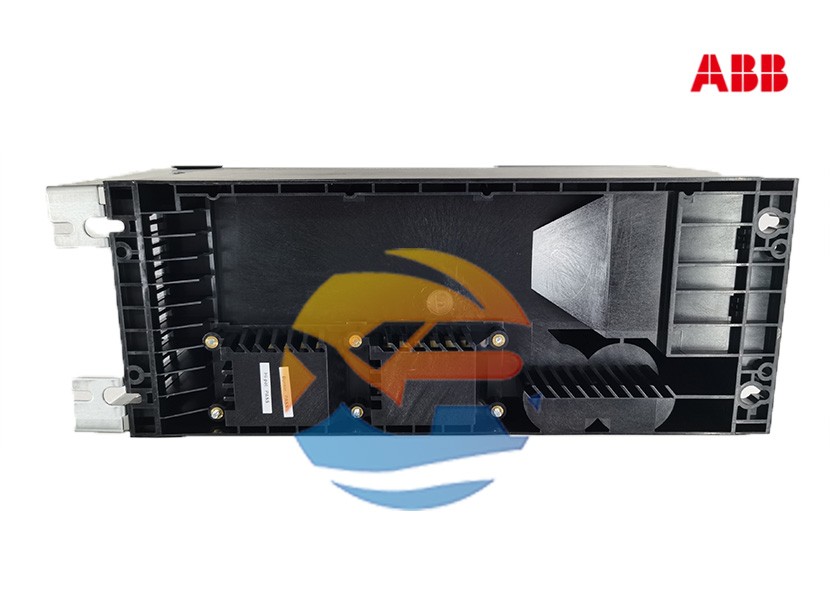

ABB ACS880-01-025A-3 + E200 AC Drive Overview
| Item | Main Parameter | |
|---|---|---|
| Model | ACS880-01-025A-3 + E200 | |
| Rated Power / Current | 11 kW (≈ 15 HP) / 25 A | |
| Power Supply | 380-415 V, three-phase | |
| Output Frequency Range | 0 – 500 Hz | |
| Protection Class | IP21 (also available as IP55 in some versions) | |
| Overload Capacity | 150 % (for 1 minute) | |
| Acceleration / Deceleration Time | 0.1 – 1800 s (adjustable) | |
| Operating Temperature | -15 °C to +55 °C | |
| Storage Temperature | -40 °C to +70 °C | |
| Dimensions (W × H × D) | 155 mm × 409 mm × 249 mm | |
| Weight | Approx. 8 kg | |
| I/O Configuration | - 2 analog inputs - 6 digital inputs - 2 analog outputs - 2 digital outputs - 3 relay outputs |
|
| Communication Interfaces | RS-485 (Modbus RTU), PROFIBUS DP, EtherNet/IP, Modbus/TCP, PROFINET, etc. | |
| Control Modes | PID regulation, V/f control (vector control requires feedback; sensorless vector control not available) | |
| Optional Features | EMC filters, brake chopper, various fieldbus modules | |
| Typical Applications | Cranes, winches, conveyors, pumps, fans, compressors, mixers, and other industrial equipment | |
| Reference Price | Approx. €1,969 (varying by region) |
Key Features
High Flexibility:
Supports both wall-mounted and cabinet installations; compatible with multiple fieldbus and Ethernet protocols for easy integration with PLC and SCADA systems.
Energy-Efficient Control:
Offers both PID and V/f control modes—ideal for general-purpose loads and applications requiring precise speed regulation.
High Reliability:
Features 150 % overload capacity, wide operating temperature range, and IP21/IP55 protection—suitable for demanding industrial environments.
EMC Compliance:
The E200 option includes a standard EMC filter, ensuring electromagnetic compatibility and minimizing interference with nearby equipment.
Example Applications
Material Handling Systems:
Such as conveyors and hoists, leveraging the wide frequency range for smooth start-up and braking.
Pump and Fan Speed Regulation:
In water treatment or ventilation systems, PID control enables precise flow and pressure management.
Compressors:
Common in oil, chemical, and process industries, providing high power density and a dependable braking unit.
