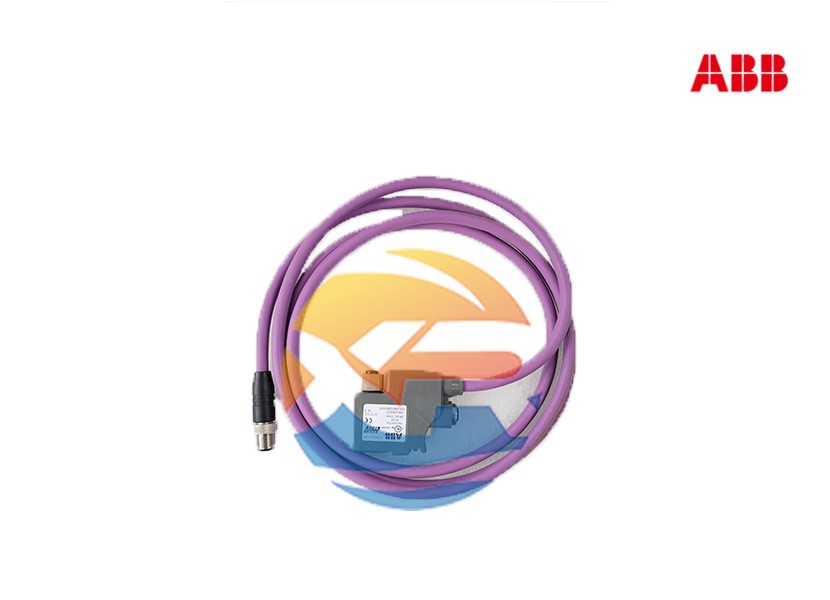

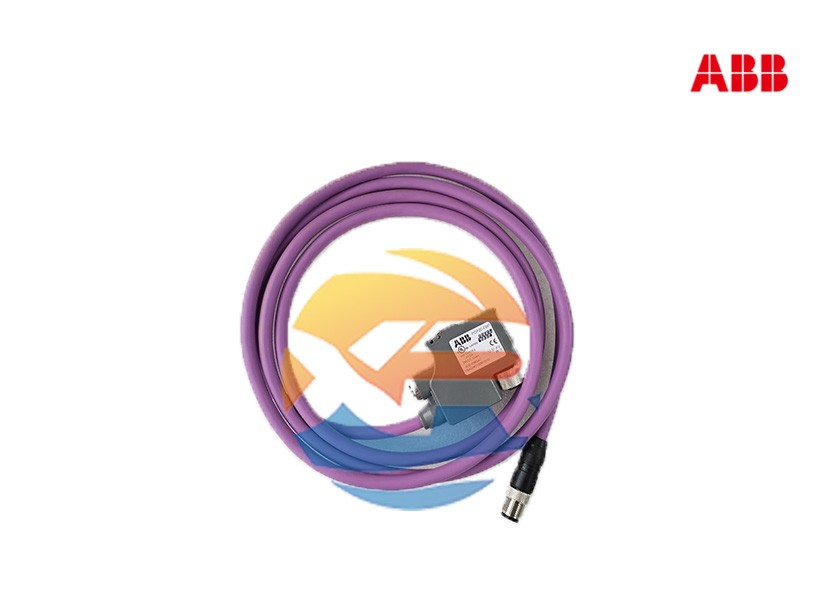

ABB PDP22-FBP Overview
Product Positioning:
The ABB PDP22-FBP is a PROFIBUS DP/V1 FieldBusPlug (FBP) designed to connect ABB FBP series motor starters and other field devices to a PROFIBUS DP network, enabling reliable communication and control between devices.
Key Functions
Protocol Conversion:
Converts local FBP protocol to PROFIBUS DP/V1, enabling seamless communication with higher-level systems such as PLCs and DCSs.
Data Transmission:
Transfers parameters, status information, and diagnostics over the PROFIBUS DP network.
Diagnostic Indication:
Equipped with LED indicators that display real-time status of power supply, bus connection, and data exchange.
Technical Specifications (Typical Models)
| Item | Description |
|---|---|
| Bus Type | PROFIBUS DP (V0/V1) |
| Transmission Rate | 960 kbps, 1.5 Mbps, 3 Mbps |
| Max. Nodes | Up to 31 nodes (DP V1) |
| Protection Class | IP65 |
| Operating Temperature | −25 °C to +70 °C |
| Dimensions | Approx. 48.5 mm × 206.6 mm × 17 mm |
| Rated Voltage | 24 V DC |
| Power Consumption | ≈ 0.9 W Weight: approx. 0.157 kg |
| Cable Lengths | 0.25 m, 0.5 m, 1 m, 5 m (also available in 2 m, 10 m, etc.) |
| Applicable Standards | IEC/EN 61131-2, UL 508, CAN/CSA C22.2 No.142 |
Common Models and Cable Lengths
| Model | Length (m) |
|---|---|
| PDP22-FBP.025 | 0.25 |
| PDP22-FBP.050 | 0.5 |
| PDP22-FBP.100 | 1 |
| PDP22-FBP.200 | 2 |
| PDP22-FBP.500 | 5 |
Typical Applications
Motor Control:
Works with ABB FBP motor starters such as UMC22-FBP and UMC100-FBP to provide PROFIBUS DP control for conveyors, fans, pumps, and machine tools.
Factory Automation:
Serves as a fieldbus coupler in production lines and process control systems, connecting sensors and actuators to upper-level controllers.
Building and Facility Automation:
Functions as a PROFIBUS node for building automation systems, enabling unified management of subsystems such as HVAC and lighting.
Summary
The ABB PDP22-FBP is a robust PROFIBUS DP FieldBusPlug engineered for industrial fieldbus connectivity. Featuring IP65 protection, wide operating temperature range, and multi-rate support, it reliably integrates ABB FBP motor starters and other field devices into PROFIBUS DP networks, ensuring efficient parameter exchange and diagnostic communication in demanding industrial environments..jpg)
