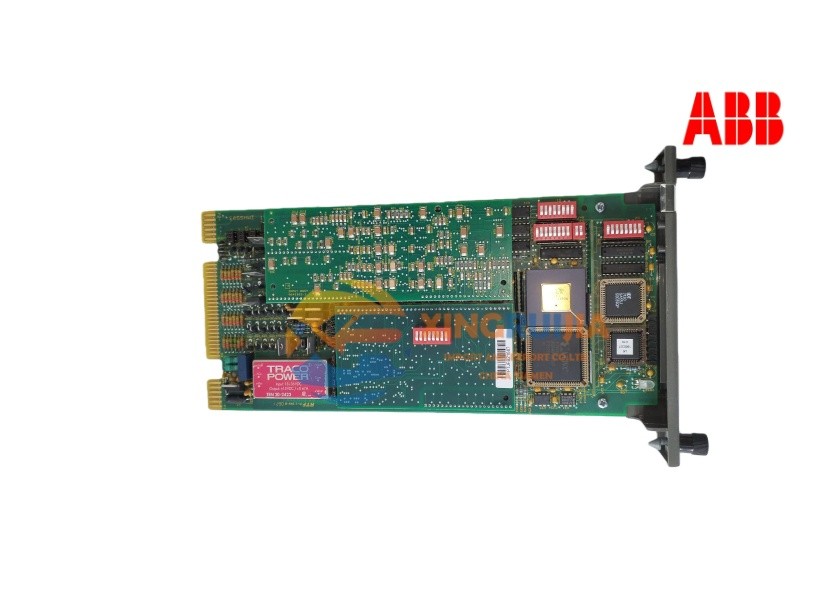

Model：ABB IMHSS03 servo module

Brand: ABB 2025-11-14
Price range (USD): 2000-4000
Country: Sweden
Parameter: Power Supply Voltage ： 24 V DC ±20%
Input Current： Max. 5 mA (signal side)
Max. Current per Channel： 10 A
Number of Channels： 3
Power Consumption： < 100 W
Protection Rating： IP67

Contact Me

Xiamen Xingruijia Import and Export Co., Ltd. has been specializing in the sales of industrial control equipment spare parts for 20 years. For more ABB models, please refer to the product list . If you need other brands or models, please contact us. We have a variety of brands and models in stock, and we can purchase difficult to order models for you. We look forward to your inquiry!!!

First hand source//affordable price//Spot inventory!

•Shipping Port: Xiamen

•Manager: Rhonda

•E-mail: sales7@saulplc.com

•Tel/WhatsApp/Wechat: + 86-15359273796

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

==============================================================================================================================================

ABB IMHSS03 Overview

The ABB IMHSS03 is an intelligent hydraulic servo module used in the ABB Harmony (or Bailey Infi 90) control system. It is designed for industrial automation applications and provides high-precision control of hydraulic valves or I/H (electro-hydraulic) converters. The module integrates a microprocessor, memory, and communication circuits, enabling multi-dimensional closed-loop feedback—including position, speed, and force—to improve system responsiveness and reliability.

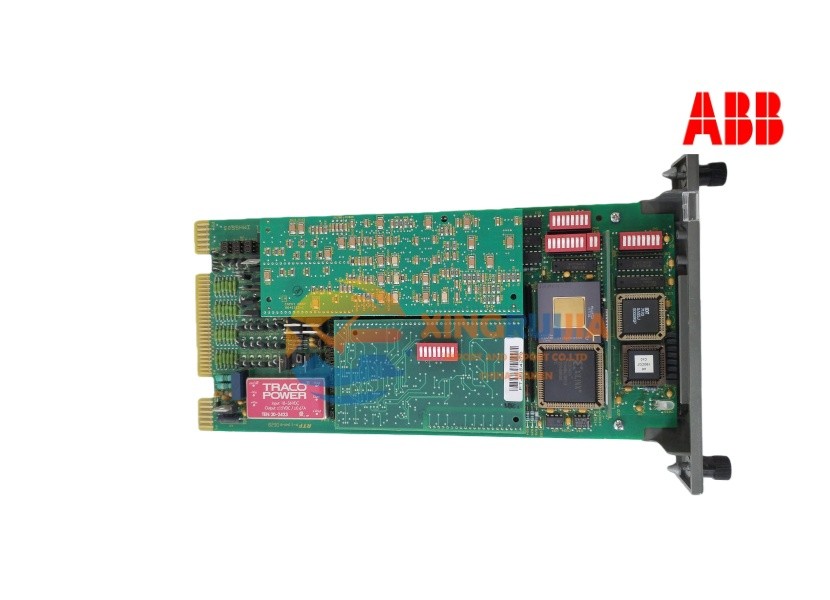

ABB IMHSS03

1. Main Functions and Features

Function / Feature	Description
Hydraulic Servo Control	Precisely adjusts hydraulic valve positions to achieve high-speed, accurate control of hydraulic actuators.
Multi-Channel	Three independent control channels, each supporting up to 10 A output current.
Built-in Diagnostics & Feedback	Provides position, speed, and force feedback; supports self-diagnostics and safety protection.
Communication Interfaces	Supports RS-485, Modbus TCP/IP, and other industrial protocols for easy integration into fieldbus or Ethernet networks.
Protection Rating	IP67 dustproof and waterproof, suitable for harsh industrial environments.
Power Consumption & Size	Power consumption < 100 W; dimensions approx. 224 mm × 168 mm × 80 mm; weight approx. 2 kg.
Operating Temperature	–20 °C to +60 °C, meeting the requirements of most industrial sites.
Compatibility	Can be directly installed in ABB Harmony / Bailey Infi 90 systems; supports PROFIBUS, DP, MODBUS, and other protocols.

2. Typical Applications

CNC machine tools

Plastic injection molding machines

Stamping machines and die-casting equipment

Packaging machinery

Robots and flexible manufacturing systems

Steam/gas turbine valve control (e.g., throttle valves)

These applications require high precision, fast response, and high reliability. The IMHSS03, with its intelligent control and diagnostic functions, significantly improves equipment efficiency and service life.

3. Technical Specifications (Selected)

Item	Parameter
Power Supply Voltage	24 V DC ±20%
Input Current	Max. 5 mA (signal side)
Max. Current per Channel	10 A
Number of Channels	3
Power Consumption	< 100 W
Protection Rating	IP67
Dimensions	224 mm × 168 mm × 80 mm
Weight	Approx. 2 kg
Communication Interfaces	RS-485, Modbus TCP/IP, PROFIBUS, DP, etc.
Operating Temperature	–20 °C to +60 °C

(The above data is compiled from multiple ABB distributors and technical documents.)

Conclusion

The ABB IMHSS03 is a high-performance, intelligent hydraulic servo module designed for industrial automation systems requiring precise hydraulic control. With multi-channel output, comprehensive communication options, and an IP67 protection rating, it enhances control accuracy and reliability across various applications such as machine tools, packaging equipment, and robotics.

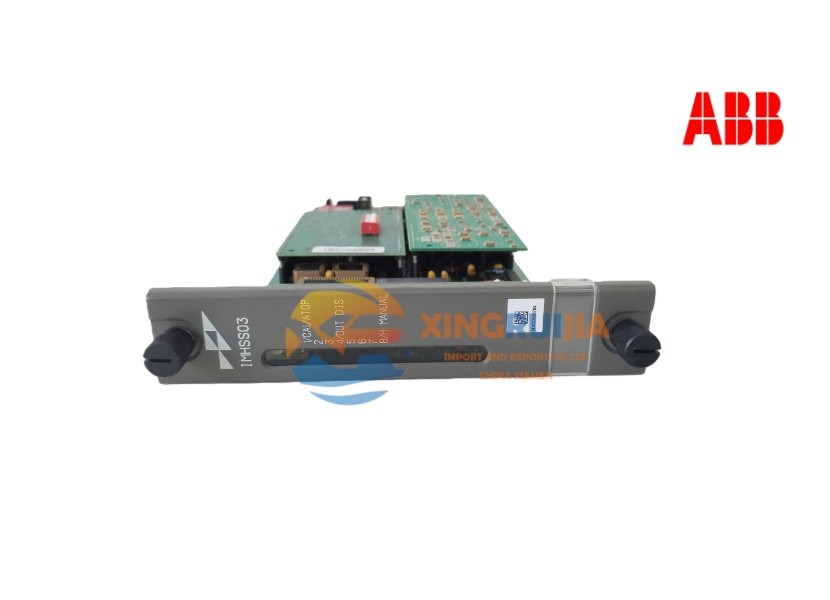

ABB IMHSS03
