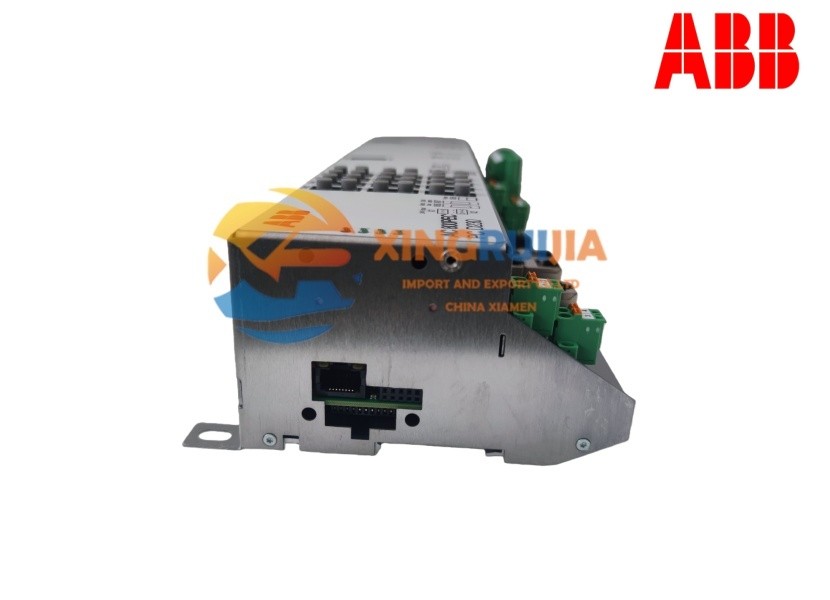

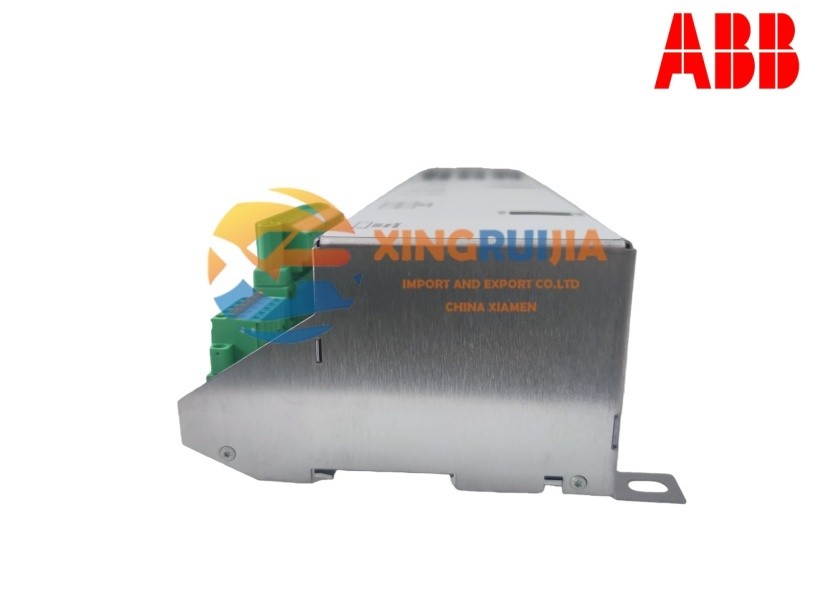

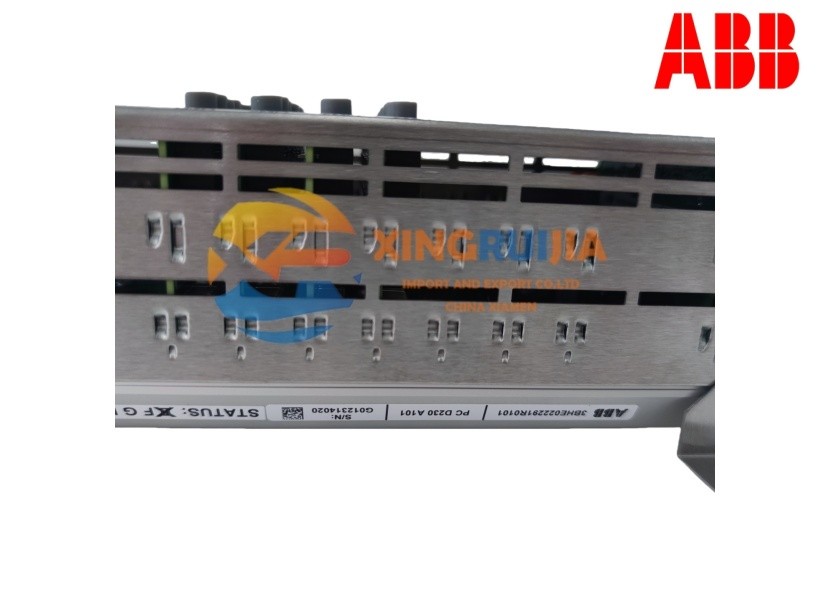

ABB PCD230A101 3BHE022291R0101

ABB PCD230A101 (part number 3BHE022291R0101) is a high-performance controller module in the ABB PCD200 series, mainly used in industrial automation and process control systems. Manufactured by ABB (Switzerland), it is a core component in the PLC/DCS domain and is commonly found in field control networks in industries such as manufacturing, energy, chemical, and transportation.

Main Features

Power supply and redundancy:
Supports DC 9–36 V (24 V typical) power input, with dual redundant power inputs and reverse-polarity protection. Power consumption is less than 4 W.

I/O interfaces:
Provides digital and analog input/output channels that can be directly connected to various sensors and actuators to achieve acquisition and control of process variables.

Communication capability:
Integrates multiple industrial communication protocols such as Ethernet, Modbus, and Ethernet/IP. Supports fieldbus and fiber-optic link alarms, making it easy to integrate with upper-level systems such as ABB System 800xA.

Mechanical specifications:
Overall dimensions are approximately 132 × 105 × 52 mm (or 142 × 73.5 × 373 mm), with IP30 protection rating. Mounted on a DIN 35 mm rail. Net weight is about 0.8 kg (or 1.53 kg), depending on the version.

Operating environment:
Operating temperature range is −40 °C to 85 °C, relative humidity ≤ 90% (non-condensing). Complies with industrial safety standards such as IEC 60730.

Typical Applications

Process control:
Real-time monitoring and regulation of key parameters such as temperature, pressure, and flow.

Data acquisition:
Efficient acquisition of field signals and transmission to upper-level systems via Ethernet.

Excitation control:
Provides fast-response voltage/current control in synchronous generator excitation systems to ensure stable generator output voltage.

System integration:
Used as an I/O expansion module for ABB System 800xA or other DCS platforms, supporting multiple fieldbuses to enable modular and scalable automation solutions.

In summary, ABB PCD230A101 (3BHE022291R0101) is an industrial controller module that combines high reliability, flexible communication, and rich I/O resources, making it suitable for automation projects with stringent requirements on reliability, real-time performance, and scalability.
