ABB 3BSE038415R1 AO810V2

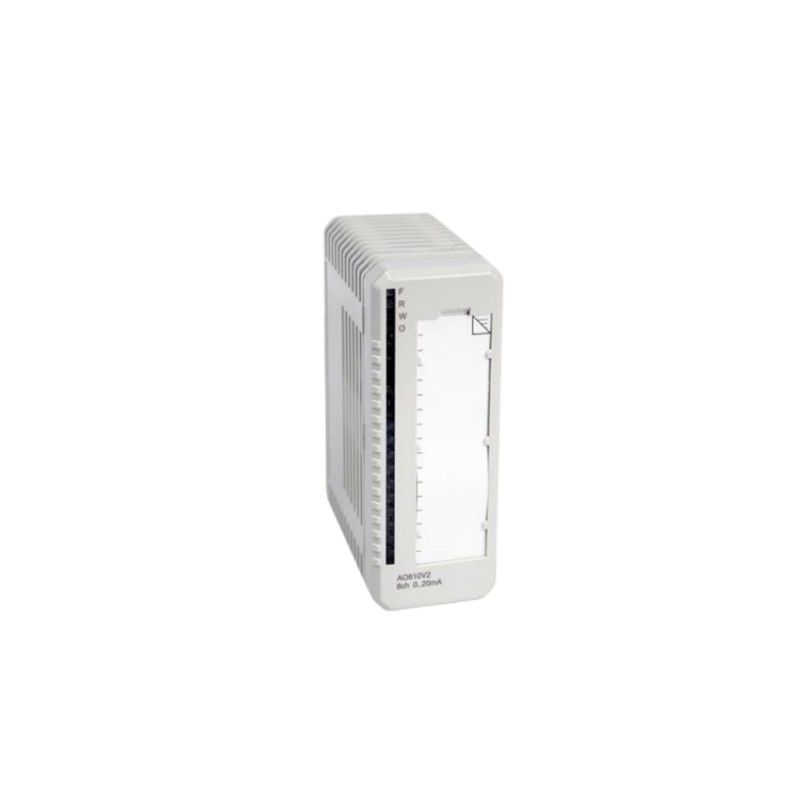

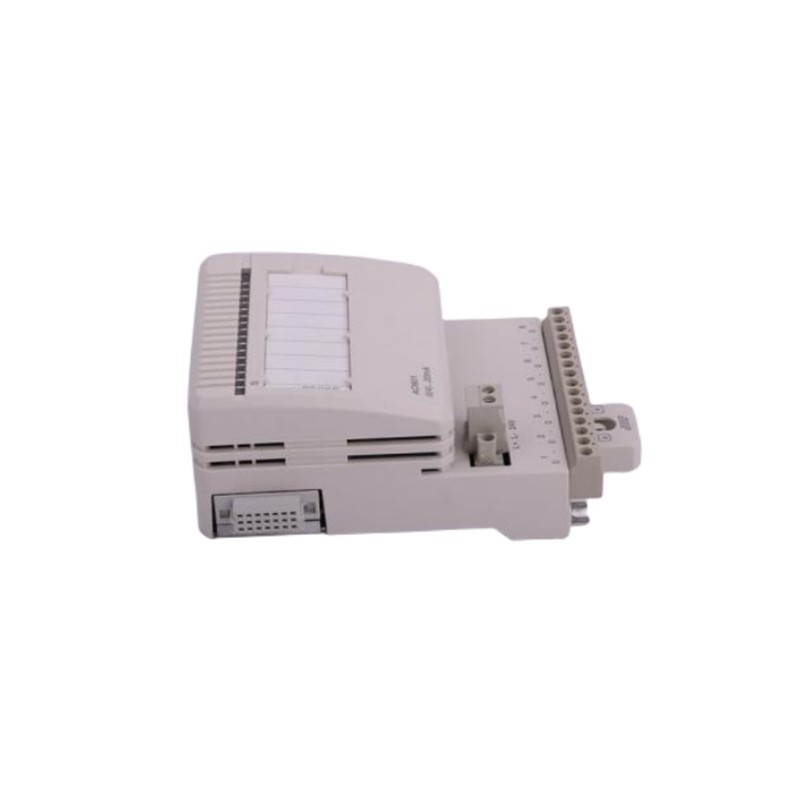

ABB AO810V2 (3BSE038415R1) is an Analog Output Module belonging to the ABB S800 I/O system. It is designed for distributed process control applications and provides reliable conversion of controller digital values into analog current signals for field devices such as control valves, actuators, and drives.

1. Product Information

2. Technical Parameters

3. Product Features

• 8-channel analog current output
  • Supports standard industrial 0–20 mA and 4–20 mA control signals.
• Advanced diagnostic functions
  • Cyclic self-diagnostics.
  • Communication monitoring between the module and D/A converters.
  • Open-circuit detection through readback verification.
  • Channel fault detection.
• Output safety functions
  • Output State on Process Fault (OSP) function can force outputs to predefined safe values when an error occurs.
  • Outputs are protected against short circuits to ZP or +24 V.

4. Structural Composition

The AO810V2 module is part of the ABB S800 modular I/O architecture and typically consists of:

• Front panel with status LEDs:
  • F (Fault)
  • R (Run)
  • W (Warning)
  • OSP indication
• Internal electronics:
  • Digital communication interface
  • D/A conversion circuitry
  • Output protection circuits
  • Diagnostic monitoring circuits
• Compatible Module Termination Units (MTU):
  • TU810
  • TU812
  • TU814
  • TU830
  • TU833

5. Application Fields

ABB AO810V2 is commonly used in:

• Process automation systems
• Chemical and petrochemical plants
• Power generation facilities
• Oil & gas control systems
• Water and wastewater treatment
• Manufacturing automation

Typical controlled devices include:

• Pneumatic control valves
• Variable frequency drives (VFDs)
• Motorized actuators
• Position controllers
• Industrial regulators

6. Compatibility

The AO810V2 is designed for integration with ABB automation platforms including:

• ABB System 800xA
• ABB AC 800M controllers
• ABB S800 I/O networks

It communicates through ABB S800 I/O communication interfaces and is installed as part of a distributed I/O station.

7. Summary

The ABB 3BSE038415R1 AO810V2 is a robust 8-channel analog output module for ABB S800 I/O systems. With 14-bit resolution, fast update time, integrated diagnostics, and support for standard 4–20 mA industrial signals, it is suitable for precise and reliable process control applications.
