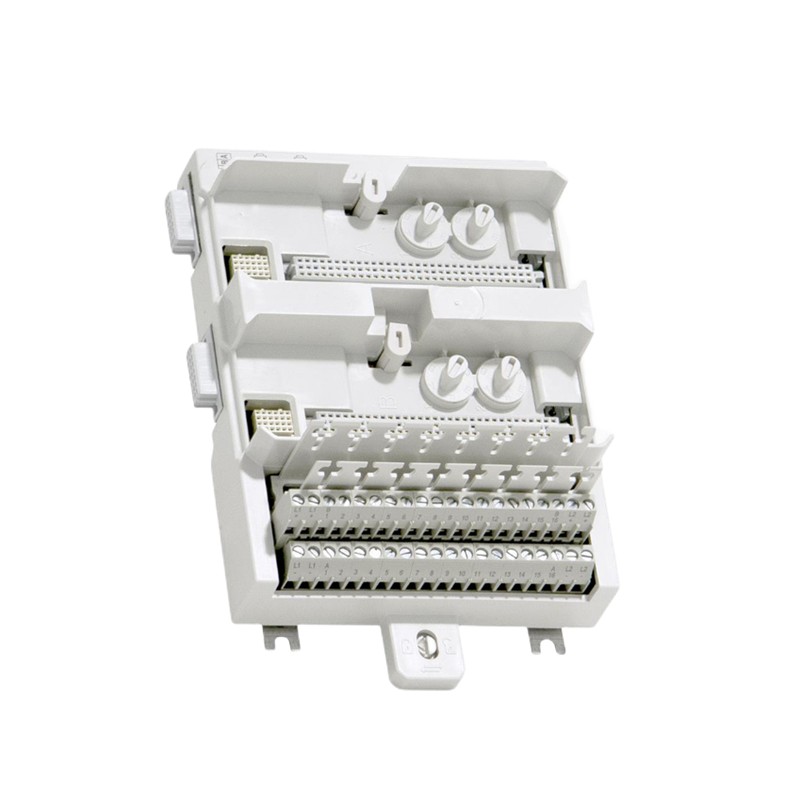

ABB 3BSE021447R1 TU845

ABB 3BSE021447R1 TU845 is a Module Termination Unit (MTU) used in the ABB S800 I/O system for ABB System 800xA / Freelance DCS environments. It is a redundant, 50 V, vertical-mount MTU designed to connect field wiring to redundant S800 I/O modules.

1. Basic Information

2. Main Function

The TU845 provides the interface between field devices and S800 I/O modules. It performs:

• Field signal termination
• Field power distribution
• ModuleBus connection and signal routing
• Mechanical keying to prevent incorrect I/O module installation
• Redundant I/O module connection support

The MTU distributes two ModuleBuses, one to each I/O module and onward to the next MTU, while generating module addressing signals.

3. Compatible I/O Modules

ABB TU845 is designed for use with:

• ABB AI845
• ABB AI880
• ABB AI880A
• ABB DP840

4. Technical Specifications

I/O Connections

• Up to 8 I/O channels
• Two I/O terminals per channel
• ZP (zero potential) connection per channel
• 2+2 process voltage connections

Electrical Ratings

• Maximum voltage: 50 V
• Maximum current per I/O channel: 2 A
• Maximum process connection current: 5 A
• Dielectric test voltage: 500 V AC

Wiring

• Solid wire: 0.2–4 mm²
• Stranded wire: 0.2–2.5 mm² (24–12 AWG)
• Recommended torque: 0.5–0.6 Nm

5. Mechanical Data

6. Environmental Specifications

• Operating temperature: 0 to +55 °C
• Storage temperature: -40 to +70 °C
• Protection class: IP20
• Relative humidity: 5–95% non-condensing
• EMC compliance: EN 61000-6-2 / EN 61000-6-4
• Hazardous area approvals available (depending on configuration)

7. Key Features

• ✅ Supports redundant S800 I/O configurations
• ✅ DIN rail mounting with grounding latch
• ✅ Mechanical coding prevents incorrect module insertion
• ✅ Supports 2-wire field device connections
• ✅ Provides integrated field power connections
• ✅ Suitable for process automation applications

8. Typical Applications

ABB TU845 is commonly used in:

• Oil & gas plants
• Power generation facilities
• Chemical processing systems
• Water treatment plants
• Industrial automation systems
• ABB System 800xA control systems

9. Related Parts

Conclusion

The ABB 3BSE021447R1 TU845 is a reliable redundant S800 I/O Module Termination Unit optimized for ABB 800xA and Freelance control systems. Its 8-channel, 50 V design, redundant architecture, and compatibility with AI845/AI880/AI880A/DP840 modules make it suitable for critical process automation installations requiring high availability.
